Specifications

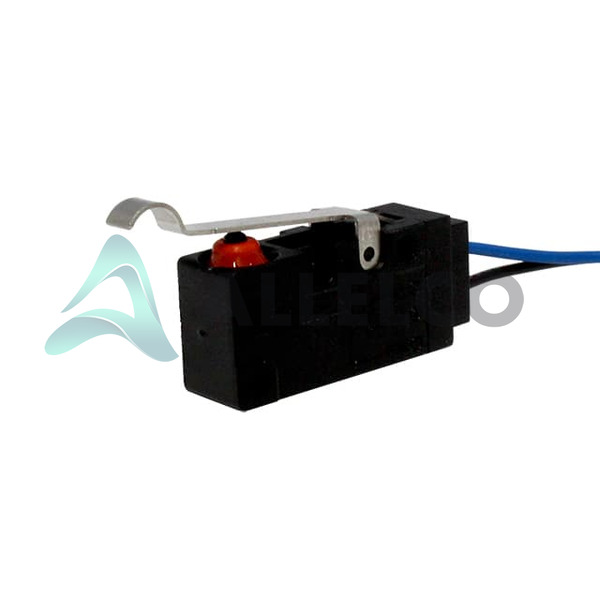

VM3SAQF3003L02 Tech Specifications
CIT Relay and Switch - VM3SAQF3003L02 technical specifications, attributes, parameters and parts with similar specifications to CIT Relay and Switch - VM3SAQF3003L02
| Product Attribute |
Attribute Value
| |
| Manufacturer |
CIT Relay and Switch |
|
| Voltage Rating - DC |
36 V |
|
| Voltage Rating - AC |
125 V |
|
| Termination Style |
Wire Leads |
|
| Switch Function |
Off-Mom |
|
| Series |
VM3S |
|
| Release Force |
180gf |
|
| Pretravel |
0.118" (3.0mm) |
|
| Package |
Box |
|
| Overtravel |
0.024" (0.6mm) |
|
| Operating Temperature |
-40°C ~ 120°C |
|
| Product Attribute |
Attribute Value
| |
| Operating Position |
0.720" (18.3mm) |
|
| Operating Force |
200gf |
|
| Mounting Type |
Chassis Mount |
|
| Mechanical Life |
1,000,000 Cycles |
|
| Ingress Protection |
IP67 - Dust Tight, Waterproof |
|
| Features |
- |
|
| Electrical Life |
50,000 Cycles |
|
| Differential Travel |
0.060" (1.5mm) |
|
| Current Rating (Amps) |
10A (AC), 6A (DC) |
|
| Circuit |
SPST-NO |
|
| Actuator Type |
Lever, Simulated Roller |
|
