Home Products Switches Limit Switches~~VM3SCQF1803L00~~

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

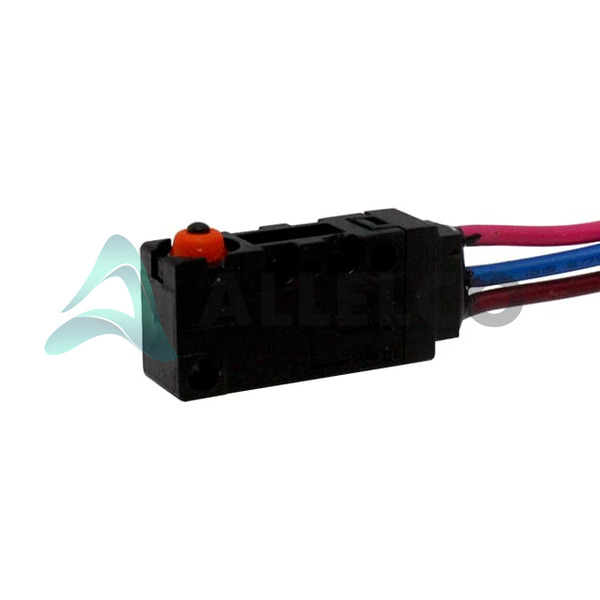

VM3SCQF1803L00 - CIT Relay and Switch

Manufacturer Part Number: VM3SCQF1803L00

Manufacturer: CIT Relay and Switch

Allelco Part Number: 98D-VM3SCQF1803L00

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: SWITCH LIMIT SPDT 10A 125V

Package: Box

Data sheet: 1.VM3SCQF1803L00.pdf ...

Datasheets
CA Proposition.pdf

Environmental Information
CIT Relay and Switch REACH.pdf CIT Relay and Switch RoHS.pdf

RoHs Status: RoHS Compliant

~~Compare~~

Our certification

In stock: 49231

Unit Price: $3.249
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$3.249	$3.25
200+	$1.257	$251.40
500+	$1.214	$607.00
1000+	$1.192	$1,192.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

VM3SCQF1803L00 Tech Specifications
CIT Relay and Switch - VM3SCQF1803L00 technical specifications, attributes, parameters and parts with similar specifications to CIT Relay and Switch - VM3SCQF1803L00

Product Attribute	Attribute Value
Manufacturer	CIT Relay and Switch
Voltage Rating - DC	36 V
Voltage Rating - AC	125 V
Termination Style	Wire Leads
Switch Function	On-Mom
Series	VM3S
Release Force	100gf
Pretravel	0.063" (1.6mm)
Package	Box
Overtravel	0.031" (0.8mm)
Operating Temperature	-40°C ~ 120°C

Product Attribute	Attribute Value
Operating Position	0.581" (14.75mm)
Operating Force	180gf
Mounting Type	Chassis Mount
Mechanical Life	1,000,000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-
Electrical Life	50,000 Cycles
Differential Travel	0.031" (0.8mm)
Current Rating (Amps)	10A (AC), 6A (DC)
Circuit	SPDT
Actuator Type	Round (Pin Plunger)

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.7000

Parts with Similar Specifications

The three parts on the right have similar specifications to CIT Relay and Switch VM3SCQF1803L00

Product Attribute
Part Number	VM3SCQF1802L00	VM3SCQF1803L03	VM3SCQF1803L06	VM3SCQF1803L02
Manufacturer	CIT Relay and Switch	CIT Relay and Switch	CIT Relay and Switch	CIT Relay and Switch
Operating Position	-	-	-	-
Release Force	-	-	-	-
Circuit	-	-	-	-
Switch Function	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Current Rating (Amps)	-	-	-	-
Termination Style	-	-	-	-
Overtravel	-	-	-	-
Series	-	-	-	-
Ingress Protection	-	-	-	-
Operating Force	-	-	-	-
Actuator Type	-	-	-	-
Voltage Rating - AC	-	-	-	-
Features	-	-	-	Simultaneous Sampling
Mechanical Life	-	-	-	-
Differential Travel	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Electrical Life	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Pretravel	-	-	-	-
Voltage Rating - DC	-	-	-	-
