Specifications

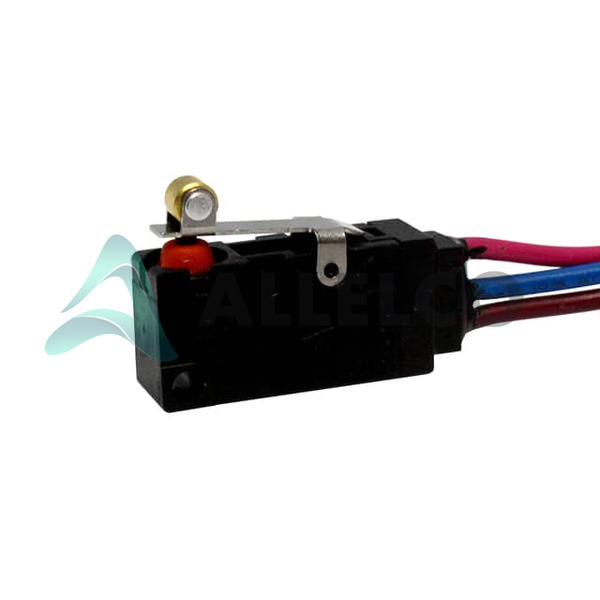

VM3SCQF3003L06 Tech Specifications
CIT Relay and Switch - VM3SCQF3003L06 technical specifications, attributes, parameters and parts with similar specifications to CIT Relay and Switch - VM3SCQF3003L06
| Product Attribute |
Attribute Value
| |
| Manufacturer |
CIT Relay and Switch |
|
| Voltage Rating - DC |
36 V |
|
| Voltage Rating - AC |
125 V |
|
| Termination Style |
Wire Leads |
|
| Switch Function |
On-Mom |
|
| Series |
VM3S |
|
| Release Force |
160gf |
|
| Pretravel |
0.067" (1.7mm) |
|
| Package |
Box |
|
| Overtravel |
0.012" (0.3mm) |
|
| Operating Temperature |
-40°C ~ 120°C |
|
| Product Attribute |
Attribute Value
| |
| Operating Position |
0.799" (20.3mm) |
|
| Operating Force |
380gf |
|
| Mounting Type |
Chassis Mount |
|
| Mechanical Life |
1,000,000 Cycles |
|
| Ingress Protection |
IP67 - Dust Tight, Waterproof |
|
| Features |
- |
|
| Electrical Life |
50,000 Cycles |
|
| Differential Travel |
0.040" (1.0mm) |
|
| Current Rating (Amps) |
10A (AC), 6A (DC) |
|
| Circuit |
SPDT |
|
| Actuator Type |
Lever, Roller |
|
