Home Products Switches DIP Switches~~DS04-254-2S-04BK~~

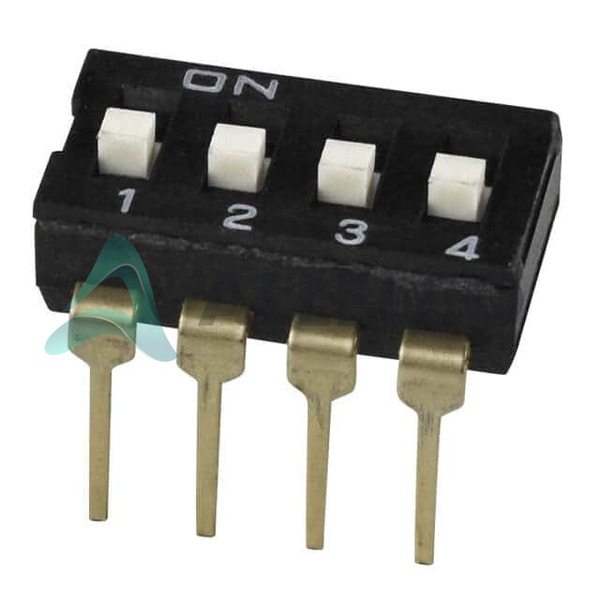

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

DS04-254-2S-04BK - CUI Devices

Name: CUI Devices DS04-254-2S-04BK
Brand: CUI Devices
SKU: DS04-254-2S-04BK
Price: 0.125 USD
Availability: InStock
Rating: 5 (4 reviews)

Manufacturer Part Number: DS04-254-2S-04BK

Manufacturer: CUI Devices

Allelco Part Number: 98D-DS04-254-2S-04BK

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: DIP SWITCH, SPST, 2.54 PITCH, FL

Package: Tube

Data sheet: 1.DS04-254-2S-04B.pdf ...

Datasheets
DS04-254 Datasheet.pdf

HTML Datasheet
DS04-254 Datasheet.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 42295

Unit Price: $0.34
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$0.34	$0.34
200+	$0.131	$26.20
500+	$0.127	$63.50
1000+	$0.125	$125.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

DS04-254-2S-04BK Tech Specifications
CUI Devices - DS04-254-2S-04BK technical specifications, attributes, parameters and parts with similar specifications to CUI Devices - DS04-254-2S-04BK

Product Attribute	Attribute Value
Manufacturer	CUI Devices
Washable	No
Voltage Rating	24VDC
Termination Style	PC Pin
Series	DS04-254
Pitch	0.100" (2.54mm), Full
Package	Tube
Operating Temperature	-40°C ~ 85°C
Number of Positions	4
Mounting Type	Through Hole
Mechanical Life	-
Length	0.439" (11.16mm)

Product Attribute	Attribute Value
Height Above Board	0.144" (3.66mm)
Features	-
Electrical Life	2,000 Cycles
Current Rating (Amps)	25mA
Contact Material	Copper Alloy
Contact Finish	Gold
Circuit	SPST
Body Material	Polybutylene Terephthalate (PBT)
Base Product Number	DS04-254
Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065

Parts with Similar Specifications

The three parts on the right have similar specifications to CUI Devices DS04-254-2S-04BK

Product Attribute
Part Number	DS04-254-2S-05BK	DS04-254-2S-06BK	DS04-254-2S-08BK	DS04-254-2S-01BK
Manufacturer	CUI Devices	CUI Devices	CUI Devices	CUI Devices
Series	-	-	-	-
Current Rating (Amps)	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Number of Positions	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Actuator Type	-	-	-	-
Features	-	-	-	Simultaneous Sampling
Termination Style	-	-	-	-
Length	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Contact Material	-	-	-	-
Electrical Life	-	-	-	-
Height Above Board	-	-	-	-
Body Material	-	-	-	-
Mechanical Life	-	-	-	-
Voltage Rating	-	-	-	-
Actuator Level	-	-	-	-
Circuit	-	-	-	-
Contact Finish	-	-	-	-
Washable	-	-	-	-
Pitch	-	-	-	-

DS04-254-2S-04BK Datasheet PDF

Download DS04-254-2S-04BK pdf datasheets and CUI Devices documentation for DS04-254-2S-04BK - CUI Devices.

Datasheets: DS04-254 Datasheet.pdf
