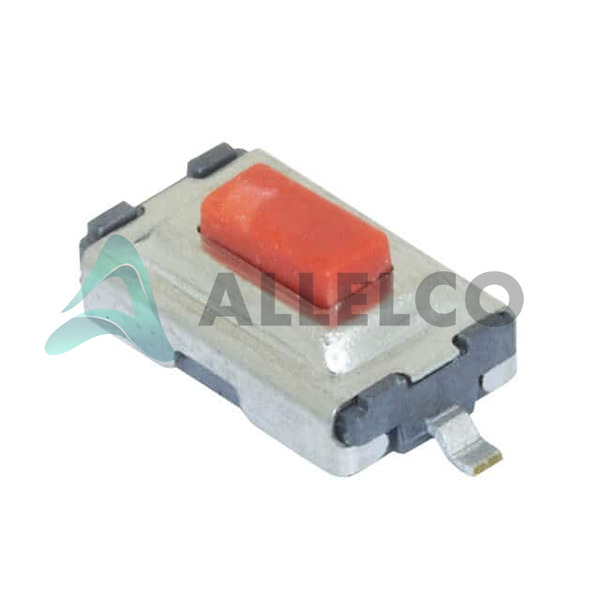

TS09-63-25-R-160-SMT-TR Tech Specifications
CUI Devices - TS09-63-25-R-160-SMT-TR technical specifications, attributes, parameters and parts with similar specifications to CUI Devices - TS09-63-25-R-160-SMT-TR
| Product Attribute |
Attribute Value
| |
| Manufacturer |
CUI Devices |
|
| Termination Style |
Gull Wing |
|
| Switch Travel |
0.25mm |
|
| Switch Function |
Off-Mom |
|
| Series |
TS09 |
|
| Package |
Tape & Reel (TR) |
|
| Outline |
6.10mm x 3.70mm |
|
| Operating Temperature |
-30°C ~ 80°C |
|
| Operating Force |
160gf |
|
| Mounting Type |
Surface Mount |
|
| Mechanical Life |
40,000 Cycles |
|
| Ingress Protection |
- |
|
| Product Attribute |
Attribute Value
| |
| Illumination Voltage (Nominal) |
- |
|
| Illumination Type, Color |
- |
|
| Illumination |
Non-Illuminated |
|
| Features |
- |
|
| Contact Rating @ Voltage |
0.05A @ 12VDC |
|
| Circuit |
SPST-NO |
|
| Base Product Number |
TS09-63 |
|
| Actuator Type |
Rectangular Button |
|
| Actuator Orientation |
Top Actuated |
|
| Actuator Material |
Polyphthalamide (PPA) |
|
| Actuator Length, Right Angle |
- |
|
| Actuator Height off PCB, Vertical |
2.50mm |
|
