Specifications

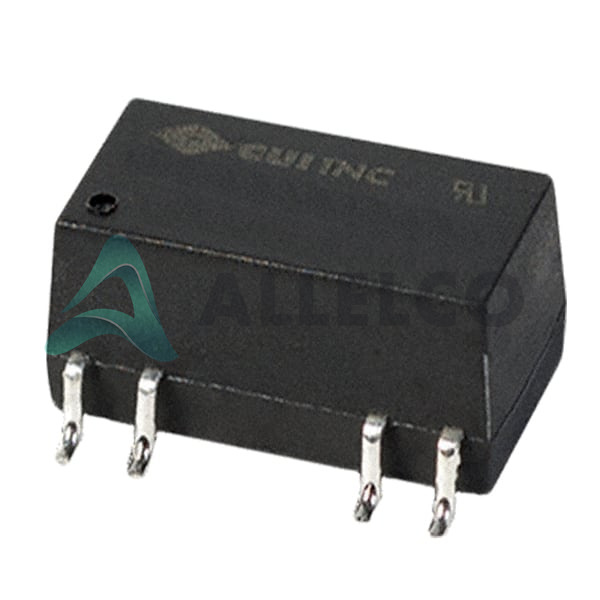

PES1-S3-S5-M-TR Tech Specifications
CUI Inc. - PES1-S3-S5-M-TR technical specifications, attributes, parameters and parts with similar specifications to CUI Inc. - PES1-S3-S5-M-TR
| Product Attribute |
Attribute Value
| |
| Manufacturer |
CUI Inc. |
|
| Voltage - Output 4 |
- |
|
| Voltage - Output 3 |
- |
|
| Voltage - Output 2 |
- |
|
| Voltage - Output 1 |
5V |
|
| Voltage - Isolation |
3 kV |
|
| Voltage - Input (Min) |
2.97V |
|
| Voltage - Input (Max) |
3.63V |
|
| Type |
Isolated Module |
|
| Standard Number |
55024; 55032 Class A; 60950-1 |
|
| Size / Dimension |
0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm) |
|
| Series |
PES1-M (1W) |
|
| Power (Watts) |
1 W |
|
| Product Attribute |
Attribute Value
| |
| Package / Case |
8-SMD Module, 5 Leads |
|
| Package |
Tape & Reel (TR) |
|
| Operating Temperature |
-40°C ~ 105°C (With Derating) |
|
| Number of Outputs |
1 |
|
| Mounting Type |
Surface Mount |
|
| Features |
SCP |
|
| Efficiency |
78% |
|
| Current - Output (Max) |
200mA |
|
| Control Features |
- |
|
| Base Product Number |
PES1-S3 |
|
| Approval Agency |
EN, UL |
|
| Applications |
ITE (Commercial) |
|
