Specifications

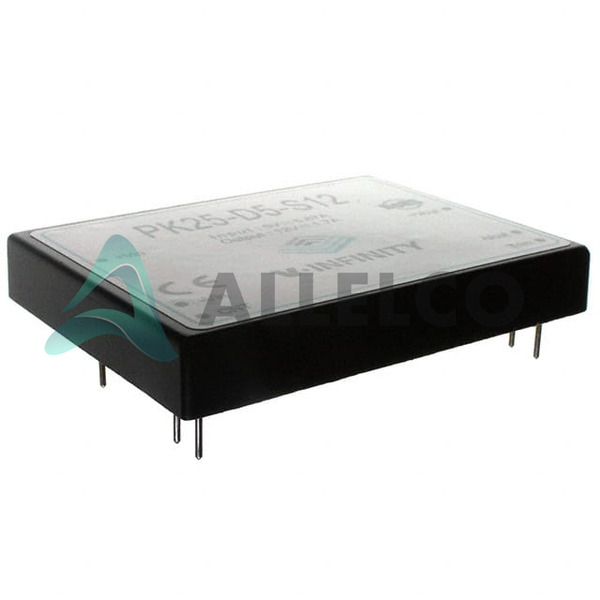

PK25-D5-S12 Tech Specifications
CUI Inc. - PK25-D5-S12 technical specifications, attributes, parameters and parts with similar specifications to CUI Inc. - PK25-D5-S12
| Product Attribute |
Attribute Value
| |
| Manufacturer |
CUI Inc. |
|
| Voltage - Output 3 |
- |
|
| Voltage - Output 2 |
- |
|
| Voltage - Output 1 |
12V |
|
| Voltage - Isolation |
500 V |
|
| Voltage - Input (Min) |
4.5V |
|
| Voltage - Input (Max) |
9V |
|
| Type |
Isolated Module |
|
| Size / Dimension |
2.56' L x 2.00' W x 0.38' H (65.0mm x 50.8mm x 9.7mm) |
|
| Series |
PK25 (25W) |
|
| Power (Watts) |
25 W |
|
| Product Attribute |
Attribute Value
| |
| Package / Case |
7-DIP Module |
|
| Package |
Box |
|
| Operating Temperature |
-20°C ~ 71°C |
|
| Number of Outputs |
1 |
|
| Mounting Type |
Through Hole |
|
| Features |
Remote On/Off, OCP, OVP |
|
| Efficiency |
77% |
|
| Current - Output (Max) |
1.7A |
|
| Control Features |
Enable, Active Low |
|
| Applications |
ITE (Commercial) |
|
