HomeProductsPower Supplies - (Board Mount)DC DC ConvertersV7805-500-SMT-TR

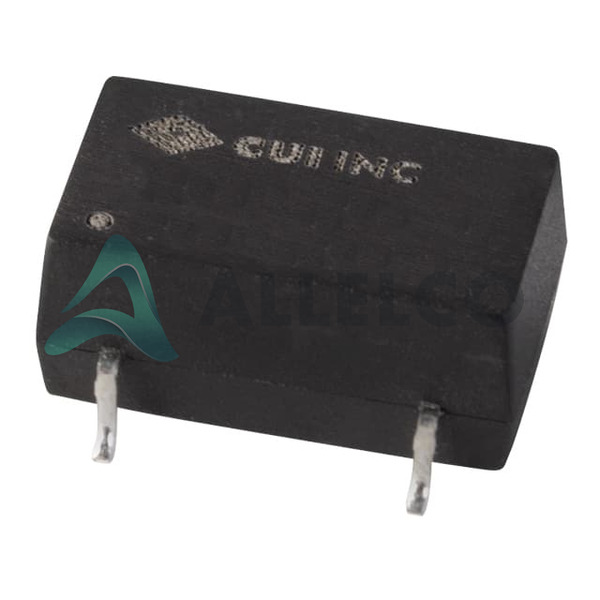

V7805-500-SMT-TR Image
V7805-500-SMT-TR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

V7805-500-SMT-TR - CUI Inc.

Manufacturer Part Number
V7805-500-SMT-TR
Manufacturer
CUI Inc.
Allelco Part Number
32D-V7805-500-SMT-TR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
DC DC CONVERTER 5V 2.5W
Package
10-SMD Module, 6 Leads
Data sheet
1.V7805-500-SMT-T.pdf ...

HTML Datasheet

V78-500-SMT.pdf
RoHs Status
RoHS Compliant
Compare
Our certification
In stock: 6199

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

V7805-500-SMT-TR Tech Specifications
CUI Inc. - V7805-500-SMT-TR technical specifications, attributes, parameters and parts with similar specifications to CUI Inc. - V7805-500-SMT-TR

Product Attribute Attribute Value
Manufacturer CUI Inc.
Voltage - Output 4 -
Voltage - Output 3 -
Voltage - Output 2 -
Voltage - Output 1 5V
Voltage - Input (Min) 6V
Voltage - Input (Max) 28V
Type Linear Regulator Replacement
Size / Dimension 0.60' L x 0.33' W x 0.29' H (15.2mm x 8.3mm x 7.3mm)
Series V78-500-SMT
Power (Watts) 2.5 W
Product Attribute Attribute Value
Package / Case 10-SMD Module, 6 Leads
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C
Number of Outputs 1
Mounting Type Surface Mount
Features Remote On/Off, OTP, SCP
Efficiency 94%
Current - Output (Max) 500mA
Control Features Enable, Active High
Base Product Number V7805
Applications ITE (Commercial)

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580

Parts with Similar Specifications

The three parts on the right have similar specifications to CUI Inc. V7805-500-SMT-TR

Product Attribute V7805-1000-SMT-TR V7806-1000-SMT-TR V7805-500-SMT V7805W-500R
Part Number V7805-1000-SMT-TR V7806-1000-SMT-TR V7805-500-SMT V7805W-500R
Manufacturer CUI Inc. CUI Inc. CUI Inc. CUI Inc.
Voltage - Output 2 - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Type - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Mounting Type - Surface Mount Through Hole Surface Mount
Voltage - Input (Max) - - - -
Voltage - Output 4 - - - -
Voltage - Input (Min) - - - -
Features - - - Simultaneous Sampling
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Voltage - Output 1 - - - -
Series - - - -
Size / Dimension - - - -
Applications - - - -
Voltage - Output 3 - - - -
Power (Watts) - - - -
Number of Outputs - - - -
Control Features - - - -
Efficiency - - - -
Current - Output (Max) - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42

V7805-500-SMT-TR Datasheet PDF

Download V7805-500-SMT-TR pdf datasheets and CUI Inc. documentation for V7805-500-SMT-TR - CUI Inc..

HTML Datasheet
V78-500-SMT.pdf
PCN Design/Specification
V78-500-SMT, V78-1000-SMT Series Design/Packaging .pdf
