HomeProductsPower Supplies - (Board Mount)DC DC ConvertersV7812-500-SMT

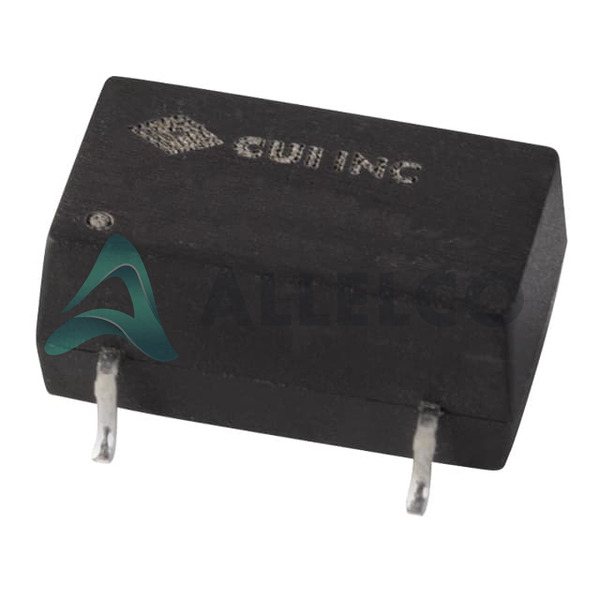

V7812-500-SMT Image
V7812-500-SMT Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

V7812-500-SMT - CUI Inc.

Manufacturer Part Number
V7812-500-SMT
Manufacturer
CUI Inc.
Allelco Part Number
98D-V7812-500-SMT
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
DC DC CONVERTER 12V 6W
Package
10-SMD Module, 6 Leads
Data sheet
1.V7812-500-SMT.pdf ...

PCN Obsolescence/ EOL

End of Life 31/MAY/2022.pdf

HTML Datasheet

V78-500-SMT.pdf
Compare
Our certification
In stock: 44083
  • Unit Price: $13.67
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $13.67 $13.67
192+ $5.46 $1,048.32
512+ $5.27 $2,698.24
992+ $5.18 $5,138.56
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

V7812-500-SMT Tech Specifications
CUI Inc. - V7812-500-SMT technical specifications, attributes, parameters and parts with similar specifications to CUI Inc. - V7812-500-SMT

Product Attribute Attribute Value
Manufacturer CUI Inc.
Voltage - Output 4 -
Voltage - Output 3 -
Voltage - Output 2 -
Voltage - Output 1 12V
Voltage - Input (Min) 14V
Voltage - Input (Max) 28V
Type Linear Regulator Replacement
Supplier Device Package -
Size / Dimension 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm)
Series V78-500-SMT
Power (Watts) 6 W
Product Attribute Attribute Value
Package / Case 10-SMD Module, 6 Leads
Package Tube
Operating Temperature -40°C ~ 85°C
Number of Outputs 1
Mounting Type Surface Mount
Features Remote On/Off, OTP, SCP
Efficiency 95%
Current - Output (Max) 500mA
Control Features Enable, Active High
Base Product Number V7812
Applications ITE (Commercial)

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) Not Applicable
ECCN EAR99
HTSUS 8504.40.9580

Parts with Similar Specifications

The three parts on the right have similar specifications to CUI Inc. V7812-500-SMT

Product Attribute V7812-500-SMT-TR V7815-500-SMT V7815-500-SMT-TR V7812W-500R
Part Number V7812-500-SMT-TR V7815-500-SMT V7815-500-SMT-TR V7812W-500R
Manufacturer CUI Inc. CUI Inc. CUI Inc. CUI Inc.
Voltage - Output 4 - - - -
Size / Dimension - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Voltage - Input (Min) - - - -
Current - Output (Max) - - - -
Power (Watts) - - - -
Voltage - Output 2 - - - -
Series - - - -
Features - - - Simultaneous Sampling
Base Product Number - DAC34H84 MAX500 ADS62P42
Control Features - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Applications - - - -
Voltage - Input (Max) - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Voltage - Output 3 - - - -
Number of Outputs - - - -
Type - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Voltage - Output 1 - - - -
Efficiency - - - -

V7812-500-SMT Datasheet PDF

Download V7812-500-SMT pdf datasheets and CUI Inc. documentation for V7812-500-SMT - CUI Inc..

PCN Obsolescence/ EOL
End of Life 31/MAY/2022.pdf
PCN Design/Specification
V78-500-SMT, V78-1000-SMT Series Design/Packaging .pdf
HTML Datasheet
V78-500-SMT.pdf
