Home Products Capacitors Aluminum Electrolytic Capacitors~~EKMH800VSN822MA63T~~

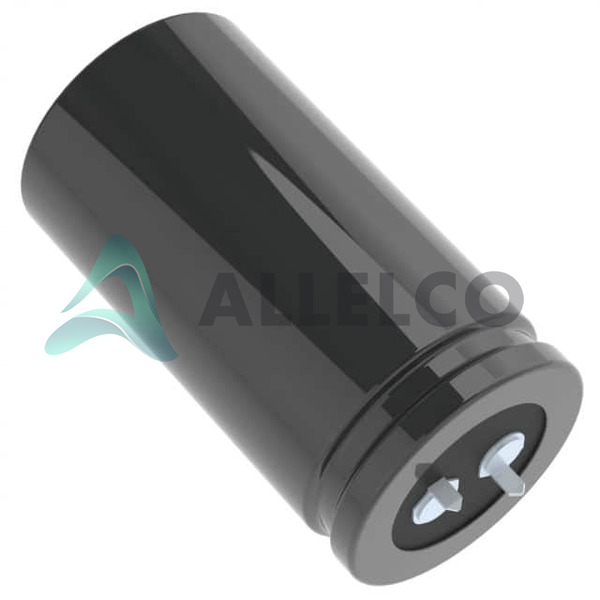

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

EKMH800VSN822MA63T - United Chemi-Con

Name: United Chemi-Con EKMH800VSN822MA63T
Brand: United Chemi-Con
SKU: EKMH800VSN822MA63T
Availability: InStock
Rating: 5 (10 reviews)

Manufacturer Part Number: EKMH800VSN822MA63T

Manufacturer: Chemi-Con

Allelco Part Number: 98D-EKMH800VSN822MA63T

Warranty: 1 Year Allelco Warranty - Find out more

Stock Status:: 334,758 pcs available, New & Original

Parts Description: CAP ALUM 8200UF 20% 80V SNAP

Package: Radial, Can - Snap-In

Data sheet: EKMH800VSN822MA.pdf

Datasheets
KMH Series Bulletin.pdf

PCN Obsolescence/ EOL
Multiple Devices 03/Apr/2020.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 334758

Specifications

EKMH800VSN822MA63T Tech Specifications
United Chemi-Con - EKMH800VSN822MA63T technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con - EKMH800VSN822MA63T

Product Attribute	Attribute Value
Manufacturer	Chemi-Con
Voltage - Rated	80 V
Tolerance	±20%
Surface Mount Land Size	-
Size / Dimension	1.378" Dia (35.00mm)
Series	KMH
Ripple Current @ Low Frequency	4.42 A @ 120 Hz
Ripple Current @ High Frequency	5.304 A @ 100 kHz
Ratings	-
Polarization	Polar

Product Attribute	Attribute Value
Package / Case	Radial, Can - Snap-In
Package	Bulk
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Lifetime @ Temp.	2000 Hrs @ 105°C
Lead Spacing	0.394" (10.00mm)
Height - Seated (Max)	2.559" (65.00mm)
ESR (Equivalent Series Resistance)	30mOhm @ 120Hz
Capacitance	8200 µF
Applications	General Purpose

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040

Parts with Similar Specifications

The three parts on the right have similar specifications to United Chemi-Con EKMH800VSN822MA63T

Product Attribute
Part Number	EKMH800VSN822MA63N	EKMH800VSN822MA63U	EKMH800VSN822MA45U	EKMH800VSN822MA45S
Manufacturer	United Chemi-Con	United Chemi-Con	United Chemi-Con	United Chemi-Con
Height - Seated (Max)	-	-	-	-
Ratings	-	-	-	-
Lead Spacing	-	-	-	-
Voltage - Rated	-	-	-	-
Capacitance	-	-	-	-
Series	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Lifetime @ Temp.	-	-	-	-
Ripple Current @ Low Frequency	-	-	-	-
Polarization	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Applications	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Ripple Current @ High Frequency	-	-	-	-
Size / Dimension	-	-	-	-
Tolerance	-	-	-	-
Surface Mount Land Size	-	-	-	-
ESR (Equivalent Series Resistance)	-	-	-	-

EKMH800VSN822MA63T Datasheet PDF

Download EKMH800VSN822MA63T pdf datasheets and United Chemi-Con documentation for EKMH800VSN822MA63T - United Chemi-Con.

Datasheets: KMH Series Bulletin.pdf
PCN Obsolescence/ EOL: Multiple Devices 03/Apr/2020.pdf
