Specifications
EMZJ250ADA331MHA0G Tech Specifications
Nippon Chemi-Con - EMZJ250ADA331MHA0G technical specifications, attributes, parameters and parts with similar specifications to Nippon Chemi-Con - EMZJ250ADA331MHA0G
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Chemi-Con |
|
| Voltage - Rated |
25V |
|
| Tolerance |
±20% |
|
| Surface Mount Land Size |
0.327" L x 0.327" W (8.30mm x 8.30mm) |
|
| Size / Dimension |
0.315" Dia (8.00mm) |
|
| Series |
Alchip™- MZJ |
|
| Ripple Current @ Low Frequency |
425mA @ 120Hz |
|
| Ripple Current @ High Frequency |
850mA @ 100kHz |
|
| Ratings |
AEC-Q200 |
|
| Polarization |
Polar |
|
| Packaging |
Original-Reel® |
|
| Package / Case |
Radial, Can - SMD |
|
| Other Names |
565-3665-6 |
|
| Product Attribute |
Attribute Value
| |
| Operating Temperature |
-55°C ~ 105°C |
|
| Mounting Type |
Surface Mount |
|
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
|
| Manufacturer Standard Lead Time |
16 Weeks |
|
| Lifetime @ Temp. |
2000 Hrs @ 105°C |
|
| Lead Spacing |
- |
|
| Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|
| Height - Seated (Max) |
0.406" (10.30mm) |
|
| ESR (Equivalent Series Resistance) |
80 mOhm @ 100kHz |
|
| Detailed Description |

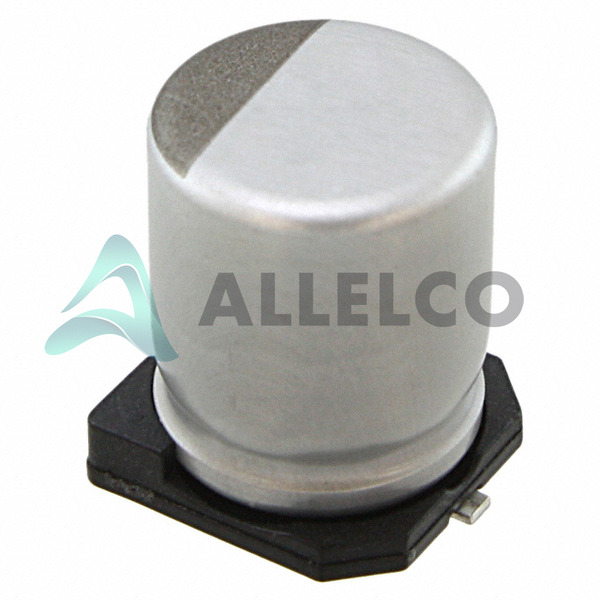

330µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 80 mOhm @ 100kHz 2000 Hrs @ 105°C |
|
| Capacitance |
330µF |
|
| Applications |
Automotive |
|
