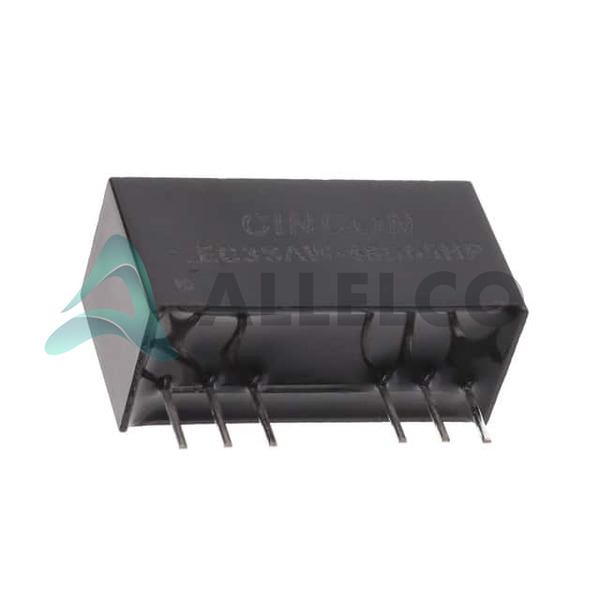

EC3SAW-48D05HP - Cincon Electronics Co. LTD

Manufacturer Part Number: EC3SAW-48D05HP

Manufacturer: Cincon

Allelco Part Number: 98D-EC3SAW-48D05HP

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: DC DC CONVERTER +/-5V 3W

Package: 8-SIP Module, 7 Leads

Data sheet: 1.EC3SAW-48D05HP.pdf ...

Datasheets
EC3SAWH Series Application Note.pdf EC3SAWH Series Datasheet.pdf

Environmental Information
Cincon Electronics RoHS Cert.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 40566

Unit Price: $18.54
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$18.54	$18.54
200+	$7.40	$1,480.00
500+	$7.15	$3,575.00
1000+	$7.03	$7,030.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

EC3SAW-48D05HP Tech Specifications
Cincon Electronics Co. LTD - EC3SAW-48D05HP technical specifications, attributes, parameters and parts with similar specifications to Cincon Electronics Co. LTD - EC3SAW-48D05HP

Product Attribute	Attribute Value
Manufacturer	Cincon
Voltage - Output 4	-
Voltage - Output 3	-
Voltage - Output 2	-5V
Voltage - Output 1	5V
Voltage - Isolation	1.5 kV
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Type	Isolated Module
Supplier Device Package	-
Standard Number	-
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Series	EC3SAW (3W)

Product Attribute	Attribute Value
Power (Watts)	3 W
Package / Case	8-SIP Module, 7 Leads
Package	Tube
Operating Temperature	-40°C ~ 85°C (With Derating)
Number of Outputs	2
Mounting Type	Through Hole
Features	Adjustable Output, Remote On/Off
Efficiency	82%
Current - Output (Max)	300mA, 300mA
Control Features	-
Approval Agency	CE, UL
Applications	ITE (Commercial)

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580

Parts with Similar Specifications

The three parts on the right have similar specifications to Cincon Electronics Co. LTD EC3SAW-48D05HP

Product Attribute
Part Number	EC3SAW-48D15HP	EC3SAW-48S05HP	EC3SAW-48D05P	EC3SAW-24S05HP
Manufacturer	Cincon Electronics Co. LTD	Cincon Electronics Co. LTD	Cincon Electronics Co. LTD	Cincon Electronics Co. LTD
Features	-	-	-	Simultaneous Sampling
Standard Number	-	-	-	-
Control Features	-	-	-	-
Power (Watts)	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Voltage - Output 1	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Voltage - Output 2	-	-	-	-
Current - Output (Max)	-	-	-	-
Voltage - Input (Min)	-	-	-	-
Efficiency	-	-	-	-
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Number of Outputs	-	-	-	-
Size / Dimension	-	-	-	-
Series	-	-	-	-
Voltage - Input (Max)	-	-	-	-
Applications	-	-	-	-
Voltage - Output 4	-	-	-	-
Voltage - Isolation	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Type	-	-	-	-
Voltage - Output 3	-	-	-	-
Approval Agency	-	-	-	-
