Manufacturer Part Number
CS61583-IL5
Manufacturer
Cirrus Logic
Introduction
The CS61583-IL5 is a highly integrated Line Interface Unit (LIU) designed for E1 and T1 telecommunications applications. It provides a complete interface solution, including line driver, line receiver, and line-side analog functions, all in a single package.
Product Features and Performance
Fully integrated E1/T1 line interface solution
Supports 2 independent E1/T1 circuits
Operates from a single 4.75V to 5.25V power supply
Low power consumption of just 310mW
Wide -40°C to +85°C operating temperature range

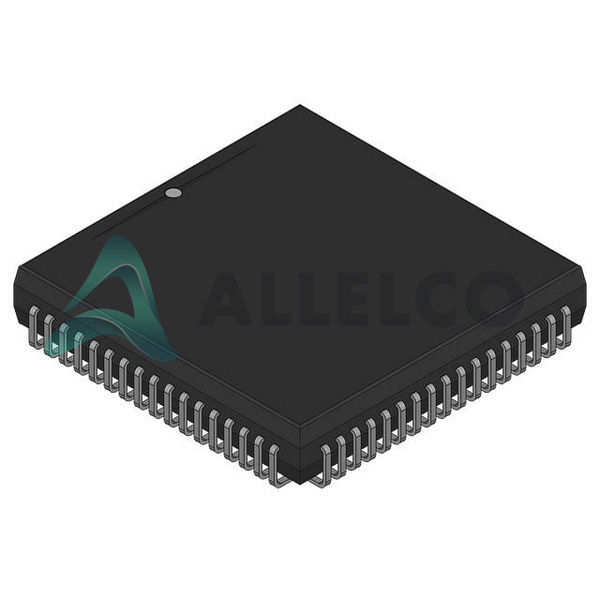

Surface mount 68-LCC (J-Lead) package
Product Advantages
Highly integrated design reduces component count and PCB space
Excellent line driver and receiver performance
Robust design ensures reliable operation in harsh telecom environments
Low power consumption extends battery life in remote applications
Key Reasons to Choose this Product
Complete E1/T1 interface solution in a single chip
Optimized for low power and space-constrained designs
Proven reliability and performance in demanding telecom applications
Cost-effective alternative to discrete line interface components
Quality and Safety Features
Designed and manufactured to high quality standards
Robust protection against ESD, overvoltage, and overcurrent
Compatibility
The CS61583-IL5 is compatible with standard E1 and T1 telecom interfaces.
Application Areas
Telecom equipment such as routers, gateways, and multiplexers
Industrial automation and control systems
Remote monitoring and data acquisition systems
Product Lifecycle
The CS61583-IL5 is an active, in-production product. There are no immediate plans for discontinuation. Customers are advised to check with our website's sales team for the latest product information and availability of any alternative or equivalent models.
