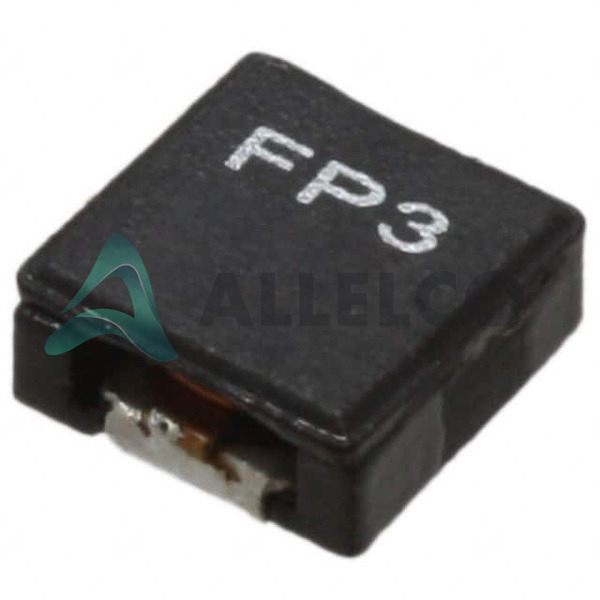

FP3-R20-R Tech Specifications
Eaton - Electronics Division - FP3-R20-R technical specifications, attributes, parameters and parts with similar specifications to Eaton - Electronics Division - FP3-R20-R
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Coiltronics (Eaton) |
|
| Type |
Drum Core, Wirewound |
|
| Tolerance |
±15% |
|
| Supplier Device Package |
- |
|
| Size / Dimension |
0.285" L x 0.264" W (7.25mm x 6.70mm) |
|
| Shielding |
Unshielded |
|
| Series |
FLAT-PAC 3 |
|
| Ratings |
- |
|
| Q @ Freq |
- |
|
| Package / Case |
Nonstandard |
|
| Package |
Tape & Reel (TR) |
|
| Product Attribute |
Attribute Value
| |
| Operating Temperature |
-40°C ~ 155°C |
|
| Mounting Type |
Surface Mount |
|
| Material - Core |
Iron Powder |
|
| Inductance Frequency - Test |
100 kHz |
|
| Inductance |
200 nH |
|
| Height - Seated (Max) |
0.118" (3.00mm) |
|
| Frequency - Self Resonant |
- |
|
| DC Resistance (DCR) |
1.88mOhm Max |
|
| Current Rating (Amps) |
15.3 A |
|
| Current - Saturation (Isat) |
20.8A |
|
