Specifications

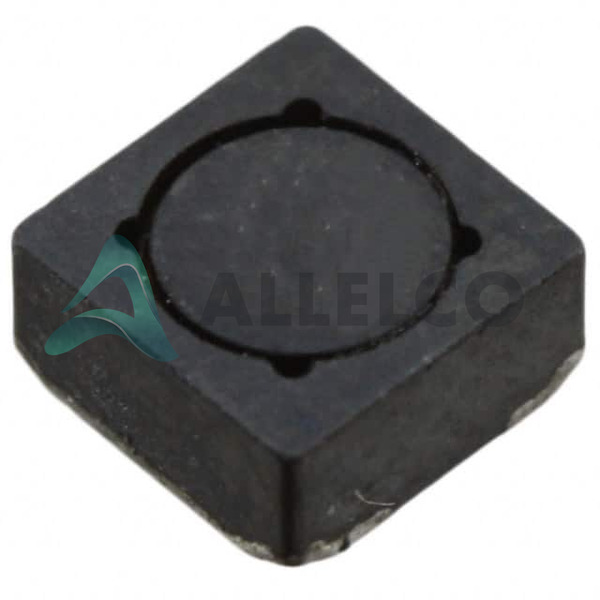

SD25-821-R Tech Specifications
Eaton - Electronics Division - SD25-821-R technical specifications, attributes, parameters and parts with similar specifications to Eaton - Electronics Division - SD25-821-R
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Coiltronics (Eaton) |
|
| Type |
Drum Core, Wirewound |
|
| Tolerance |
±20% |
|
| Supplier Device Package |
- |
|
| Size / Dimension |
0.205" L x 0.205" W (5.20mm x 5.20mm) |
|
| Shielding |
Shielded |
|
| Series |
SD |
|
| Ratings |
- |
|
| Q @ Freq |
- |
|
| Package / Case |
Nonstandard |
|
| Package |
Tape & Reel (TR) |
|
| Product Attribute |
Attribute Value
| |
| Operating Temperature |
-40°C ~ 85°C |
|
| Mounting Type |
Surface Mount |
|
| Material - Core |
Ferrite |
|
| Inductance Frequency - Test |
100 kHz |
|
| Inductance |
820 µH |
|
| Height - Seated (Max) |
0.098" (2.50mm) |
|
| Frequency - Self Resonant |
- |
|
| DC Resistance (DCR) |
5.04Ohm |
|
| Current Rating (Amps) |
230 mA |
|
| Current - Saturation (Isat) |
139mA |
|
