Specifications

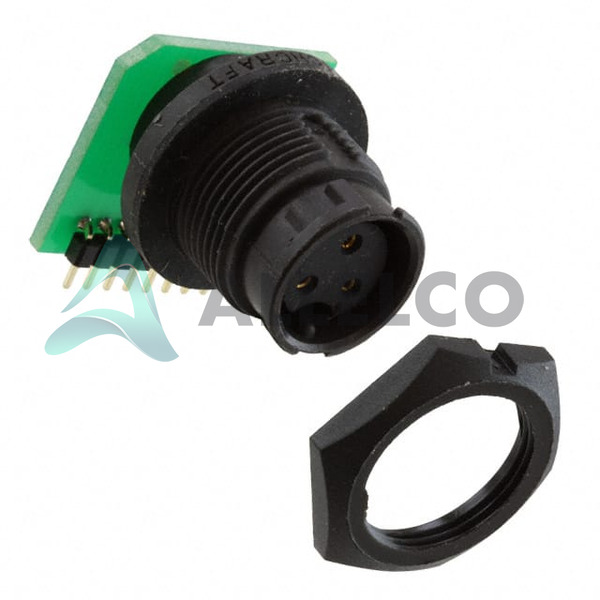

EN3P2FRAPCBN Tech Specifications
Switchcraft Inc. - EN3P2FRAPCBN technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. - EN3P2FRAPCBN
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Conxall / Switchcraft |
|
| Voltage Rating |
250VAC/DC |
|
| Termination |
Circuit Board, Solder |
|
| Shielding |
Unshielded |
|
| Shell Size, MIL |
- |
|
| Shell Size - Insert |
- |
|
| Shell Material |
Thermoplastic |
|
| Shell Finish |
- |
|
| Series |
EN3® |
|
| Primary Material |
Plastic |
|
| Package |
Bulk |
|
| Orientation |
Keyed |
|
| Operating Temperature |
-40°C ~ 65°C |
|
| Number of Positions |
2 |
|
| Mounting Type |
Panel Mount, Through Hole, Right Angle |
|
| Mounting Feature |
Bulkhead - Front Side Nut |
|
| Product Attribute |
Attribute Value
| |
| Material Flammability Rating |
UL94 V-0 |
|
| Insert Material |
Elastomer |
|
| Ingress Protection |
IP66/IP68 - Dust Tight, Water Resistant, Waterproof |
|
| Features |
- |
|
| Fastening Type |
Bayonet Lock |
|
| Current Rating (Amps) |
5A |
|
| Contact Material |
Copper Alloy |
|
| Contact Finish Thickness - Mating |
- |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Receptacle, Female Sockets |
|
| Color |
Black |
|
| Cable Opening |
- |
|
| Base Product Number |
EN3P2F |
|
| Backshell Material, Plating |
- |
|
| Applications |
General Purpose, Instrumentation, Marine, Medical |
|
