Specifications

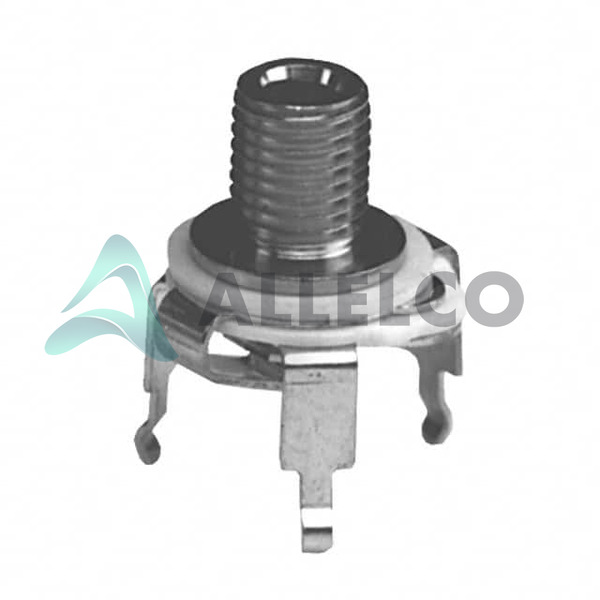

TR1PC Tech Specifications
Switchcraft Inc. - TR1PC technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. - TR1PC
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Conxall / Switchcraft |
|
| Voltage - Rated |
- |
|
| Thread Size |
#10-48 |
|
| Termination |
Solder |
|
| Signal Lines |
Mono |
|
| Shielding |
Unshielded |
|
| Series |
Micro-Jax® |
|
| Panel Hole Size |
0.190' (4.83mm) |
|
| Package |
Bulk |
|
| Operating Temperature |
-20°C ~ 65°C |
|
| Number of Positions/Contacts |
2 Conductors, 3 Contacts |
|
| Mounting Type |
Panel Mount, Through Hole |
|
| Mating Length/Depth |
- |
|
| Internal Switch(s) |
Single Switch |
|
| Product Attribute |
Attribute Value
| |
| Insulation Color |
- |
|
| Industry Recognized Mating Diameter |
2.46mm ID (0.097') |
|
| Includes |
3 pcs - 1 Connector, 1 Nut, 1 Washer |
|
| Housing Material |
- |
|
| Gender |
Female |
|
| Features |
Mounting Hardware, Thread Lock |
|
| Contact Material - Plating |
Tin |
|
| Contact Material |
Nickel Silver Alloy |
|
| Connector Type |
Phone Jack |
|
| Cable Opening |
- |
|
| Body Material |
Brass |
|
| Body Color |
Silver |
|
| Actual Diameter |
0.100' (2.54mm) |
|
