Specifications

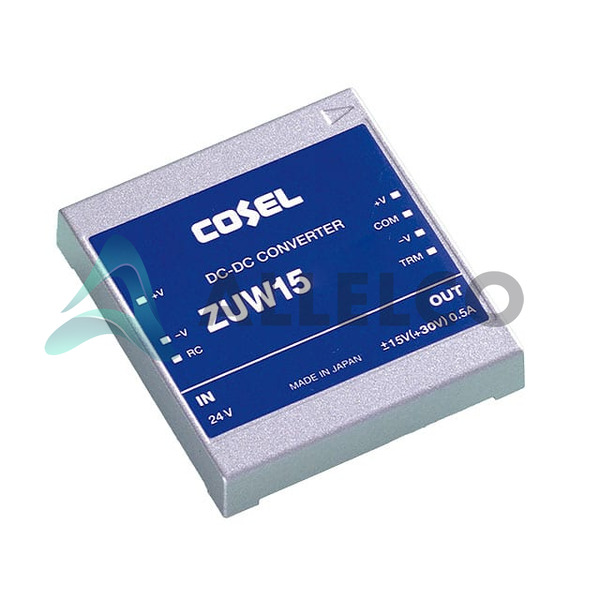

ZUW151215 Tech Specifications
Cosel USA, Inc. - ZUW151215 technical specifications, attributes, parameters and parts with similar specifications to Cosel USA, Inc. - ZUW151215
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Cosel |
|
| Voltage - Output 3 |
- |
|
| Voltage - Output 2 |
-15V |
|
| Voltage - Output 1 |
15V |
|
| Voltage - Isolation |
500 V |
|
| Voltage - Input (Min) |
9V |
|
| Voltage - Input (Max) |
18V |
|
| Type |
Isolated Module |
|
| Supplier Device Package |
- |
|
| Size / Dimension |
1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm) |
|
| Product Attribute |
Attribute Value
| |
| Series |
ZUW (15W) |
|
| Package / Case |
7-DIP Module |
|
| Package |
Box |
|
| Operating Temperature |
-20°C ~ 71°C (With Derating) |
|
| Number of Outputs |
2 |
|
| Mounting Type |
Through Hole |
|
| Features |
Remote On/Off, OCP, OVP |
|
| Efficiency |
83% |
|
| Current - Output (Max) |
500mA, 500mA |
|
| Applications |
ITE (Commercial) |
|
