HomeProductsConnectors, InterconnectsRectangular Connectors - Headers, Male Pins140-513-417-060

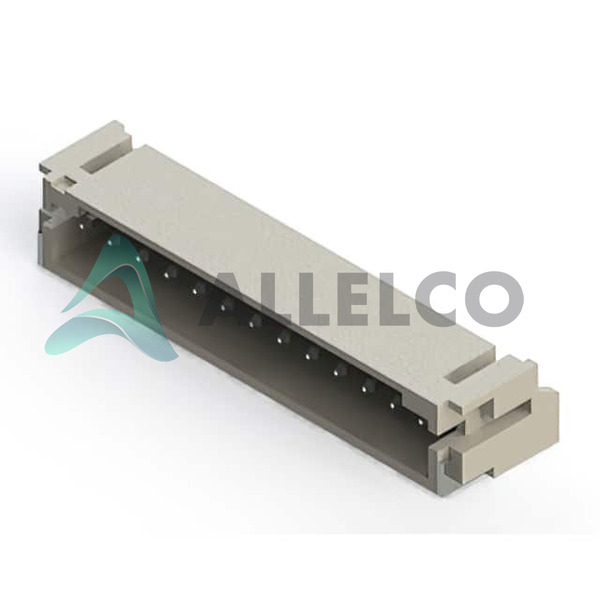

140-513-417-060 Image
140-513-417-060 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

140-513-417-060 - EDAC Inc.

Manufacturer Part Number
140-513-417-060
Manufacturer
EDAC Inc.
Allelco Part Number
98D-140-513-417-060
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
2.0MM PITCH CONNECTOR WITH 13 SU
Package
Tape & Reel (TR)
Data sheet
1.140-513-417-060.pdf ...

Environmental Information

EDAC REACH.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 28429
  • Unit Price: $1.089
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.089 $1.09
200+ $0.434 $86.80
500+ $0.42 $210.00
1000+ $0.413 $413.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

140-513-417-060 Tech Specifications
EDAC Inc. - 140-513-417-060 technical specifications, attributes, parameters and parts with similar specifications to EDAC Inc. - 140-513-417-060

Product Attribute Attribute Value
Manufacturer EDAC Inc.
Voltage Rating 100VAC/DC
Termination Solder
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Series 140
Row Spacing - Mating -
Pitch - Mating 0.079" (2.00mm)
Package Tape & Reel (TR)
Overall Contact Length -
Operating Temperature -25°C ~ 85°C
Number of Rows 1
Number of Positions Loaded All
Number of Positions 13
Mounting Type Surface Mount, Right Angle
Material Flammability Rating UL94 V-0
Mated Stacking Heights -
Insulation Material Polyamide (PA9T), Nylon 9T
Product Attribute Attribute Value
Insulation Height 0.217" (5.51mm)
Insulation Color Natural
Ingress Protection -
Features Solder Retention
Fastening Type Detent Lock
Current Rating (Amps) 2A
Contact Type Male Pin
Contact Shape Square
Contact Material Brass
Contact Length - Post -
Contact Length - Mating -
Contact Finish Thickness - Post -
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Finish - Mating Tin
Connector Type Header
Base Product Number 140-513
Applications -

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to EDAC Inc. 140-513-417-060

Product Attribute 140-514-417-060 140-512-417-060 140-515-417-060 140-513-417-011
Part Number 140-514-417-060 140-512-417-060 140-515-417-060 140-513-417-011
Manufacturer EDAC Inc. EDAC Inc. EDAC Inc. EDAC Inc.
Mated Stacking Heights - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Number of Positions Loaded - - - -
Ingress Protection - - - -
Shrouding - - - -
Insulation Color - - - -
Voltage Rating - - - -
Style - - - -
Insulation Height - - - -
Contact Finish - Post - - - -
Termination - - - -
Number of Rows - - - -
Features - - - Simultaneous Sampling
Contact Finish Thickness - Post - - - -
Applications - - - -
Current Rating (Amps) - - - -
Overall Contact Length - - - -
Contact Length - Mating - - - -
Fastening Type - - - -
Contact Finish - Mating - - - -
Contact Finish Thickness - Mating - - - -
Connector Type - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Number of Positions - - - -
Material Flammability Rating - - - -
Pitch - Mating - - - -
Insulation Material - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Contact Material - - - -
Contact Length - Post - - - -
Row Spacing - Mating - - - -
Series - - - -
Contact Shape - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Contact Type - - - -
