HomeProductsConnectors, InterconnectsBackplane Connectors - Specialized516-056-501-406

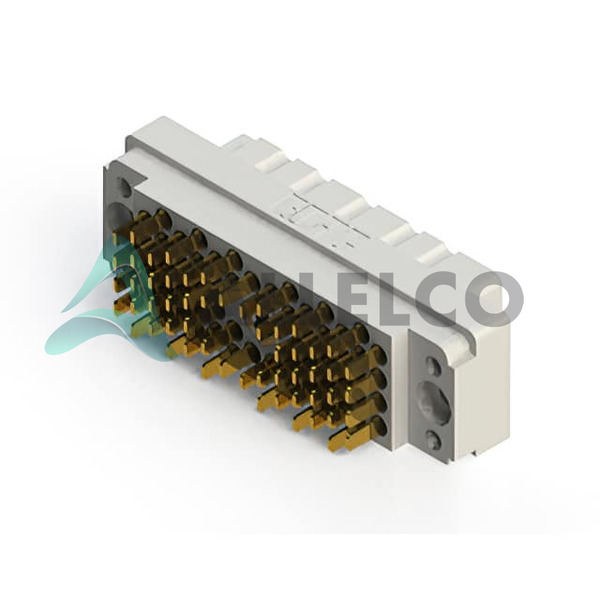

516-056-501-406 Image
516-056-501-406 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

516-056-501-406 - EDAC Inc.

Manufacturer Part Number
516-056-501-406
Manufacturer
EDAC Inc.
Allelco Part Number
98D-516-056-501-406
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
516 SERIES RACK & PANEL CONNECTO
Package
Bulk
Data sheet
1.516-056-501-406.pdf ...

Environmental Information

EDAC REACH.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 37761
  • Unit Price: $70.288
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $70.288 $70.29
200+ $28.046 $5,609.20
500+ $27.108 $13,554.00
1000+ $26.645 $26,645.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

516-056-501-406 Tech Specifications
EDAC Inc. - 516-056-501-406 technical specifications, attributes, parameters and parts with similar specifications to EDAC Inc. - 516-056-501-406

Product Attribute Attribute Value
Manufacturer EDAC Inc.
Voltage Rating -
Termination Solder
Series 516
Pitch 0.150" (3.81mm)
Package Bulk
Operating Temperature -40°C ~ 105°C
Number of Rows 9
Number of Positions Loaded All
Number of Positions 56
Number of Columns 14
Product Attribute Attribute Value
Mounting Type Panel Mount
Material Flammability Rating UL94 V-0
Features Jackscrew, Guide Pin
Current Rating (Amps) 8.5A
Contact Layout, Typical -
Contact Finish Thickness 10.0µin (0.25µm)
Contact Finish Gold
Connector Usage Backplane
Connector Type Receptacle, Hermaphroditic Contacts
Connector Style Rack and Panel
Color Gray

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180

Parts with Similar Specifications

The three parts on the right have similar specifications to EDAC Inc. 516-056-501-406

Product Attribute 516-056-501-416 516-056-501-401 516-056-501-410 516-056-501-420
Part Number 516-056-501-416 516-056-501-401 516-056-501-410 516-056-501-420
Manufacturer EDAC Inc. EDAC Inc. EDAC Inc. EDAC Inc.
Connector Style - - - -
Connector Type - - - -
Contact Finish Thickness - - - -
Pitch - - - -
Number of Positions - - - -
Number of Positions Loaded - - - -
Termination - - - -
Current Rating (Amps) - - - -
Contact Layout, Typical - - - -
Connector Usage - - - -
Color - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Features - - - Simultaneous Sampling
Material Flammability Rating - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Voltage Rating - - - -
Series - - - -
Contact Finish - - - -
Number of Rows - - - -
Number of Columns - - - -

516-056-501-406 Datasheet PDF
