HomeProductsConnectors, InterconnectsD-Sub Connector Assemblies663-015-364-034

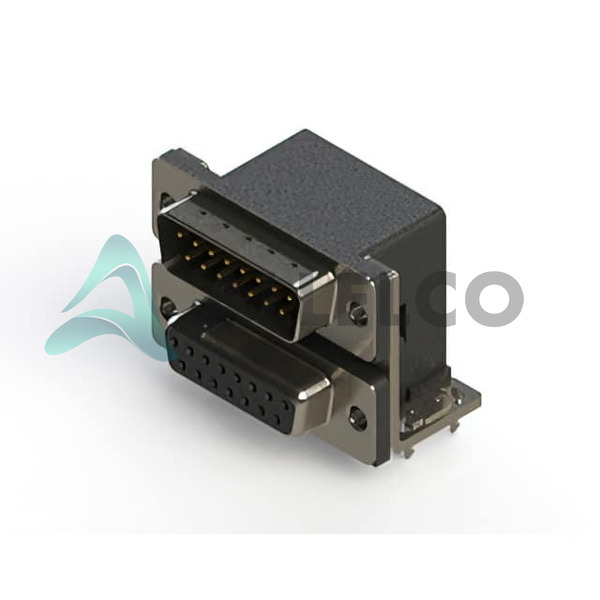

663-015-364-034 Image
663-015-364-034 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

663-015-364-034 - EDAC Inc.

Manufacturer Part Number
663-015-364-034
Manufacturer
EDAC Inc.
Allelco Part Number
98D-663-015-364-034
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
663 SERIES RIGHT ANGLE DUAL D-SU
Package
Tray
Data sheet
1.663-015-364-034.pdf ...

Environmental Information

EDAC REACH.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 42317
  • Unit Price: $8.184
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $8.184 $8.18
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

663-015-364-034 Tech Specifications
EDAC Inc. - 663-015-364-034 technical specifications, attributes, parameters and parts with similar specifications to EDAC Inc. - 663-015-364-034

Product Attribute Attribute Value
Manufacturer EDAC Inc.
Wire Gauge -
Voltage Rating -
Termination Solder
Shell Size, Connector Layout 2 (DA, A); 2 (DA, A)
Shell Material, Finish Steel, Nickel Plated
Series 663
Package Tray
Operating Temperature -55°C ~ 85°C
Number of Rows 2, 2
Number of Positions 15, 15
Mounting Type Through Hole, Right Angle
Material Flammability Rating UL94 V-0
Ingress Protection -
Product Attribute Attribute Value
Flange Feature Housing/Shell (Unthreaded)
Features Board Lock, Grounding Indents, Mounting Brackets, Shielded
Dielectric Material Polyester Thermoplastic
Current Rating (Amps) 3A per Contact
Contact Type Signal
Contact Material Brass, Phosphor Bronze
Contact Form -
Contact Finish Thickness 15.0µin (0.38µm)
Contact Finish Gold
Connector Type Plug, Male Pins; Receptacle, Female Sockets
Connector Style D-Sub - Stacked
Color Black
Base Product Number 663-015
Backset Spacing 0.318" (8.08mm)

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to EDAC Inc. 663-015-364-034

Product Attribute 663-015-364-03A 663-015-364-031 663-015-364-030 663-015-364-040
Part Number 663-015-364-03A 663-015-364-031 663-015-364-030 663-015-364-040
Manufacturer EDAC Inc. EDAC Inc. EDAC Inc. EDAC Inc.
Connector Type - - - -
Dielectric Material - - - -
Series - - - -
Current Rating (Amps) - - - -
Color - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Number of Positions - - - -
Ingress Protection - - - -
Number of Rows - - - -
Contact Form - - - -
Termination - - - -
Shell Size, Connector Layout - - - -
Features - - - Simultaneous Sampling
Contact Finish - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Connector Style - - - -
Wire Gauge - - - -
Contact Material - - - -
Shell Material, Finish - - - -
Flange Feature - - - -
Voltage Rating - - - -
Material Flammability Rating - - - -
Backset Spacing - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Contact Type - - - -
Contact Finish Thickness - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42

663-015-364-034 Datasheet PDF

Download 663-015-364-034 pdf datasheets and EDAC Inc. documentation for 663-015-364-034 - EDAC Inc..

Datasheets
663-015-364-034 Drawing.pdf 661,662,663,664 Series Ordering Guide.pdf
HTML Datasheet
663-015-364-034 Drawing.pdf
Environmental Information
EDAC REACH.pdf
