Manufacturer Part Number

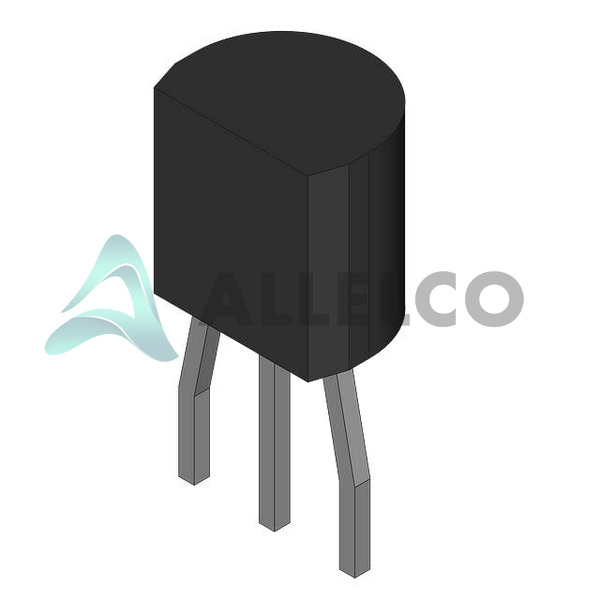

LM431BIZ
Manufacturer
onsemi
Introduction
The LM431BIZ is a shunt voltage reference that provides an adjustable voltage output. It has a wide operating voltage range and is suitable for various power management applications.
Product Features and Performance
Adjustable output voltage range: 2.495V to 36V
Output current capability: 100mA
Voltage tolerance: ±1%
Temperature coefficient: 50ppm/°C (typical)
Wide operating temperature range: -40°C to 85°C
Through-hole and surface-mount package options available
Product Advantages
Adjustable output voltage provides flexibility for different application requirements
Robust performance across a wide temperature range
Efficient power management with low power consumption
Key Reasons to Choose This Product
Versatile and reliable voltage reference solution
Ease of design and integration into power management circuits
Cost-effective and readily available from onsemi
Quality and Safety Features
Robust design for reliable operation
Compliance with industry standards and safety regulations
Compatibility
Compatible with a wide range of power management and control applications
Application Areas
Power supplies
Voltage regulation
Instrumentation and test equipment
Industrial control systems
Product Lifecycle
The LM431BIZ is an obsolete product, but onsemi offers alternative voltage reference models that may be suitable replacements. Customers are advised to contact our website's sales team for more information on available options.
