HomeProductsIntegrated Circuits (ICs)PMIC - Voltage ReferenceLM431SAIMFX

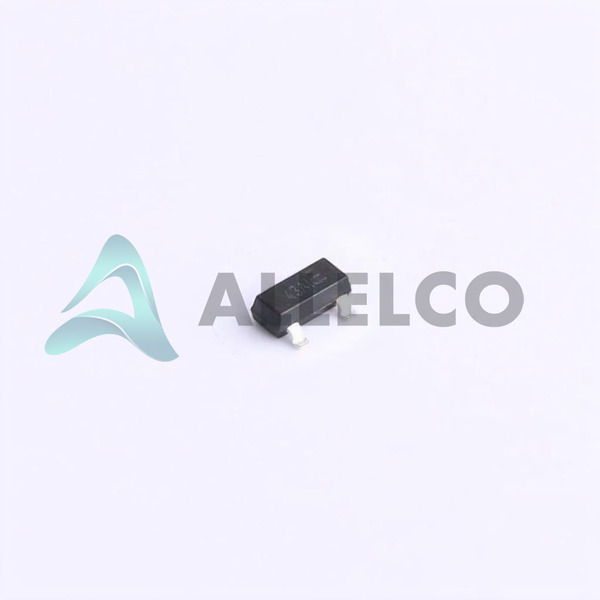

LM431SAIMFX Image
LM431SAIMFX Image - 1LM431SAIMFX Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

LM431SAIMFX - Fairchild Semiconductor

Manufacturer Part Number
LM431SAIMFX
Manufacturer
Fairchild (onsemi)
Allelco Part Number
32D-LM431SAIMFX
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
ADJUSTABLE/2.5 V, 2% TOLERANCE S
Package
SOT-23F-3
Data sheet
-
Compare
Our certification
In stock: 446400
  • Unit Price: $0.459
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.459 $0.46
10+ $0.383 $3.83
30+ $0.346 $10.38
100+ $0.307 $30.70
500+ $0.272 $136.00
1000+ $0.26 $260.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

LM431SAIMFX Tech Specifications
Fairchild Semiconductor - LM431SAIMFX technical specifications, attributes, parameters and parts with similar specifications to Fairchild Semiconductor - LM431SAIMFX

Product Attribute Attribute Value
Manufacturer Fairchild (onsemi)
Voltage - Output (Min/Fixed) 2.5V
Voltage - Output (Max) 36 V
Voltage - Input -
Tolerance ±2%
Temperature Coefficient 50ppm/°C Typical
Supplier Device Package SOT-23F-3
Series -
Reference Type Shunt
Package / Case SOT-23-3 Flat Leads
Product Attribute Attribute Value
Package Bulk
Output Type Adjustable
Operating Temperature -40°C ~ 85°C (TA)
Noise - 10Hz to 10kHz -
Noise - 0.1Hz to 10Hz -
Mounting Type Surface Mount
Current - Supply -
Current - Output 100 mA
Current - Cathode 1 mA
Base Product Number LM431

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

LM431SAIMFX

Manufacturer

onsemi

Introduction

The LM431SAIMFX is a precision programmable shunt voltage reference IC from onsemi. It offers an adjustable output voltage range from 2.5V to 36V, making it suitable for a wide variety of applications that require a stable and accurate voltage reference.

Product Features and Performance

Adjustable output voltage range: 2.5V to 36V

Low output voltage tolerance: ±2%

Low temperature coefficient: 50ppm/°C typical

Capable of delivering up to 100mA of output current

Wide operating temperature range: -40°C to 85°C

Product Advantages

Flexible output voltage adjustment

Precise voltage regulation

Robust thermal performance

Efficient power delivery

Key Reasons to Choose This Product

Versatile voltage reference solution for diverse applications

Reliable and stable performance

Cost-effective design for budget-conscious projects

Compact surface-mount package for space-constrained designs

Quality and Safety Features

Meets industry-standard quality and reliability requirements

Robust overcurrent and overvoltage protection mechanisms

Designed and manufactured to onsemi's high-quality standards

Compatibility

The LM431SAIMFX is compatible with a wide range of electronic systems and circuits that require a precise and adjustable voltage reference, including:

Analog and mixed-signal circuits

Power supply designs

Industrial control systems

Automotive electronics

Consumer electronics

Application Areas

Voltage regulation in power supplies

Reference voltage for analog-to-digital converters (ADCs)

Precision voltage reference for op-amp circuits

Biasing and reference circuits in general electronics

Product Lifecycle

The LM431SAIMFX is an active and in-production product. There are no known plans for discontinuation at this time. However, customers are advised to check with our website's sales team for the latest product information and availability.

Parts with Similar Specifications

The three parts on the right have similar specifications to Fairchild Semiconductor LM431SAIMFX

Product Attribute LM431SAIMFX LM431SACMFX LM431SBIMFX LM431SACMFX_G
Part Number LM431SAIMFX LM431SACMFX LM431SBIMFX LM431SACMFX_G
Manufacturer onsemi onsemi onsemi onsemi
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Base Product Number - DAC34H84 MAX500 ADS62P42
Temperature Coefficient - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Voltage - Output (Max) - - - -
Output Type - Current - Unbuffered Voltage - Buffered -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Current - Output - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Noise - 10Hz to 10kHz - - - -
Current - Cathode - - - -
Reference Type - External, Internal External External, Internal
Voltage - Input - - - -
Current - Supply - - - -
Noise - 0.1Hz to 10Hz - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Series - - - -
Tolerance - - - -
Voltage - Output (Min/Fixed) - - - -

Customers Also Interested in
