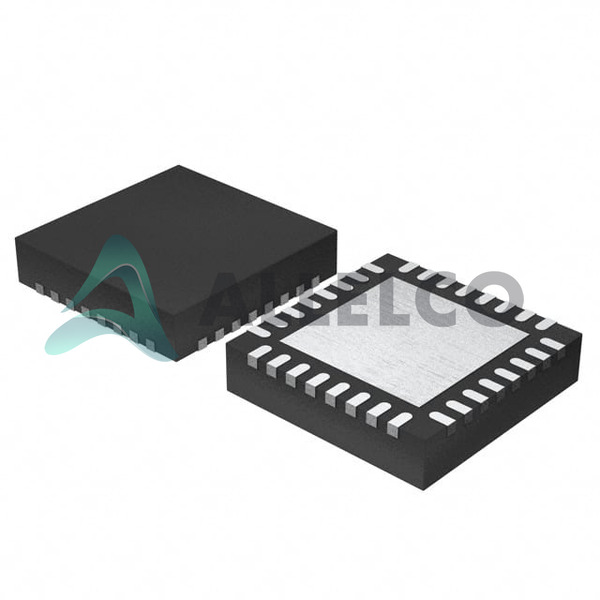

MWCT1200CFM Image
MWCT1200CFM Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

MWCT1200CFM - NXP USA Inc.

Manufacturer Part Number
MWCT1200CFM
Manufacturer
NXP Semiconductors
Allelco Part Number
32D-MWCT1200CFM
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
14,921 pcs available, New & Original
Parts Description
IC MULTI COIL 5W 5V 32QFN
Package
32-HVQFN (5x5)
Data sheet
MWCT1200CFM.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 14921

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

MWCT1200CFM Tech Specifications
NXP USA Inc. - MWCT1200CFM technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. - MWCT1200CFM

Product Attribute Attribute Value
Manufacturer NXP Semiconductors
Voltage - Supply 2.7V ~ 3.6V
Supplier Device Package 32-HVQFN (5x5)
Series -
Package / Case 32-VFQFN Exposed Pad
Package Tray
Product Attribute Attribute Value
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount, Wettable Flank
Current - Supply 300µA
Base Product Number MWCT1200
Applications Wireless Power Transmitter
