Specifications

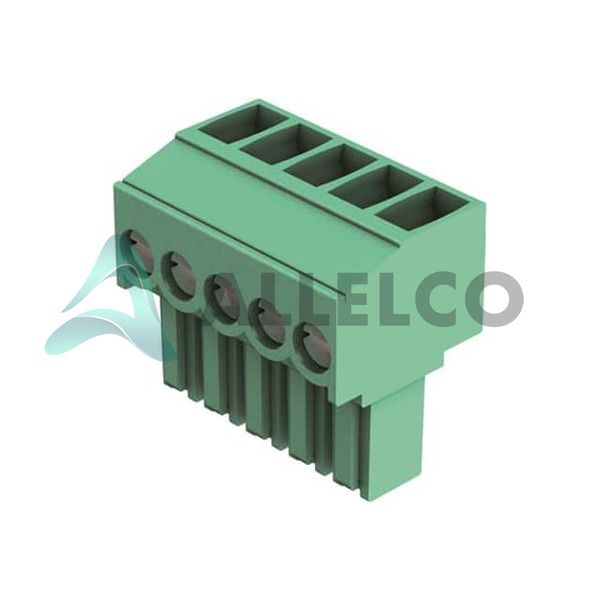

14312514402000 Tech Specifications
HARTING - 14312514402000 technical specifications, attributes, parameters and parts with similar specifications to HARTING - 14312514402000
| Product Attribute |
Attribute Value
| |
| Manufacturer |
HARTING |
|
| Wire Strip Length |
5-6mm |
|
| Wire Gauge or Range - mm² |
0.05-1.5mm² |
|
| Wire Gauge or Range - AWG |
14-30 AWG |
|
| Voltage - UL |
300 V |
|
| Type |
Plug, Female Sockets |
|
| Torque - Screw |
0.2-0.25 Nm (1.7-2.2 Lb-In) |
|
| Termination Style |
Screw |
|
| Series |
har-flexicon® |
|
| Screw Size |
M2 |
|
| Positions Per Level |
25 |
|
| Plug Wire Entry |
180° |
|
| Pitch |
0.138" (3.50mm) |
|
| Package |
Bulk |
|
| Operating Temperature |
-40°C ~ 110°C |
|
| Product Attribute |
Attribute Value
| |
| Number of Positions |
25 |
|
| Number of Levels |
1 |
|
| Mounting Type |
Free Hanging (In-Line) |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Insulation Height |
0.610" (15.49mm) |
|
| Ingress Protection |
- |
|
| Housing Material |
Polyamide (PA), Nylon, Polyphthalamide (PPA) |
|
| Header Orientation |
- |
|
| Features |
- |
|
| Current - UL |
11 A |
|
| Current - IEC |
- |
|
| Contact Tail Length |
- |
|
| Contact Mating Finish |
Tin |
|
| Contact Material |
Copper Alloy |
|
| Color |
Green |
|
