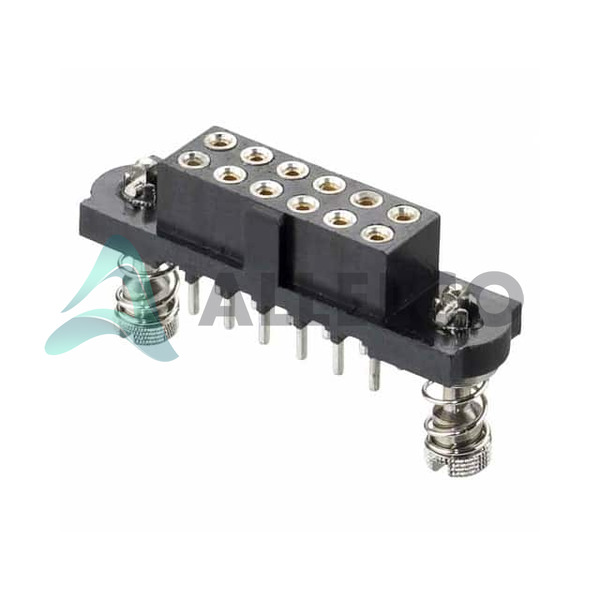

M80-4T11242FD Tech Specifications
Harwin Inc. - M80-4T11242FD technical specifications, attributes, parameters and parts with similar specifications to Harwin Inc. - M80-4T11242FD
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Harwin |
|
| Voltage Rating |
800V |
|
| Termination |
Solder |
|
| Style |
Board to Board or Cable |
|
| Series |
Datamate J-Tek |
|
| Row Spacing - Mating |
0.079" (2.00mm) |
|
| Pitch - Mating |
0.079" (2.00mm) |
|
| Package |
Tube |
|
| Operating Temperature |
-55°C ~ 125°C |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
12 |
|
| Mounting Type |
Through Hole |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
7.3mm, 7.55mm |
|
| Insulation Material |
Polyphenylene Sulfide (PPS), Glass Filled |
|
| Insulation Height |
0.205" (5.20mm) |
|
| Product Attribute |
Attribute Value
| |
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
Jackscrews, Mating Flange, Mounting Flange, Polarizing Key |
|
| Fastening Type |
Screw Lock |
|
| Current Rating (Amps) |
2.2A |
|
| Contact Type |
Female Socket |
|
| Contact Shape |
Circular |
|
| Contact Material |
Beryllium Copper |
|
| Contact Length - Post |
0.118" (3.00mm) |
|
| Contact Finish Thickness - Post |
137.8µin (3.50µm) |
|
| Contact Finish Thickness - Mating |
12.0µin (0.30µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Receptacle |
|
| Base Product Number |
M80-4T1 |
|
| Applications |
Automotive, General Purpose, Military |
|
