Specifications

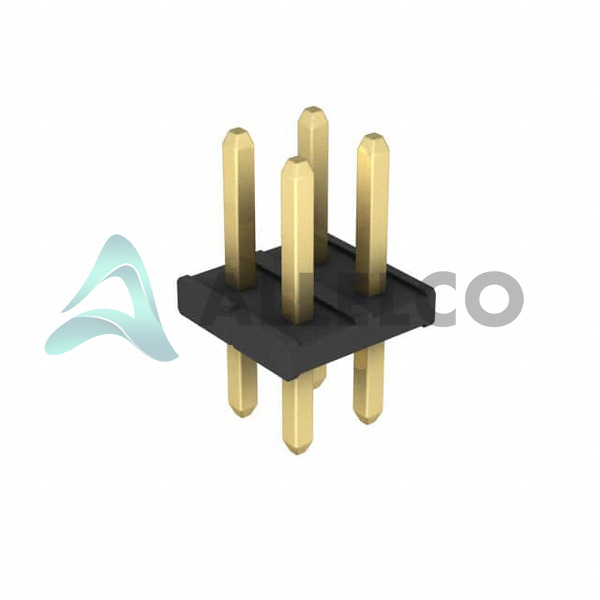

A3C-4P-2DSA Tech Specifications
Hirose Electric Co Ltd - A3C-4P-2DSA technical specifications, attributes, parameters and parts with similar specifications to Hirose Electric Co Ltd - A3C-4P-2DSA
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Hirose |
|
| Voltage Rating |
200V |
|
| Termination |
Solder |
|
| Style |
Board to Board or Cable |
|
| Shrouding |
Unshrouded |
|
| Series |
A3 |
|
| Row Spacing - Mating |
0.079' (2.00mm) |
|
| Pitch - Mating |
0.079' (2.00mm) |
|
| Package |
Tube |
|
| Overall Contact Length |
0.276' (7.00mm) |
|
| Operating Temperature |
-55°C ~ 85°C |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
4 |
|
| Mounting Type |
Through Hole |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
5.1mm, 7.9mm |
|
| Insulation Material |
Polyamide (PA), Nylon |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.035' (0.90mm) |
|
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
- |
|
| Fastening Type |
Push-Pull |
|
| Current Rating (Amps) |
1A |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Square |
|
| Contact Material |
Brass |
|
| Contact Length - Post |
0.102' (2.60mm) |
|
| Contact Length - Mating |
0.138' (3.50mm) |
|
| Contact Finish Thickness - Post |
Flash |
|
| Contact Finish Thickness - Mating |
8.00µin (0.203µm) |
|
| Contact Finish - Post |
Gold |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Applications |
- |
|
