HomeProductsConnectors, InterconnectsCircular ConnectorsHR30-8JB-12S

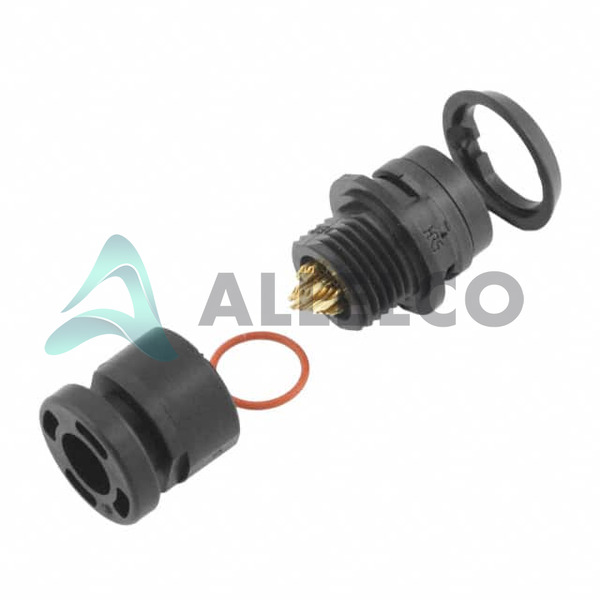

HR30-8JB-12S Image
HR30-8JB-12S Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

HR30-8JB-12S - Hirose Electric Co Ltd

Manufacturer Part Number
HR30-8JB-12S
Manufacturer
Hirose
Allelco Part Number
98D-HR30-8JB-12S
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN JACK FMALE 12P SOLDER CUP
Package
Tray
Data sheet
1.HR30-8JB-12S.pdf ...
RoHs Status
RoHS Compliant
Compare
Our certification
In stock: 46764
  • Unit Price: $7.697
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $7.697 $7.70
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

HR30-8JB-12S Tech Specifications
Hirose Electric Co Ltd - HR30-8JB-12S technical specifications, attributes, parameters and parts with similar specifications to Hirose Electric Co Ltd - HR30-8JB-12S

Product Attribute Attribute Value
Manufacturer Hirose
Voltage Rating 30VAC, 42VDC
Termination Solder Cup
Shielding -
Shell Size, MIL -
Shell Size - Insert 8
Shell Material -
Shell Finish -
Series HR30
Primary Material -
Package Tray
Orientation Keyed
Operating Temperature -25°C ~ 85°C
Number of Positions 12 (Power)
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Product Attribute Attribute Value
Material Flammability Rating UL94 V-0
Insert Material -
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Features Backshell, Strain Relief
Fastening Type Push-Pull
Current Rating (Amps) 2A
Contact Material -
Contact Finish Thickness - Mating -
Contact Finish - Mating Gold
Connector Type Jack, Female Sockets
Color Black
Cable Opening -
Base Product Number HR30
Backshell Material, Plating -
Applications Industrial, Marine, Medical

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020

Parts with Similar Specifications

The three parts on the right have similar specifications to Hirose Electric Co Ltd HR30-8JB-12S

Product Attribute HR30-8J-12S(71) HR30-8PB-12P HR30-8P-12P(71) HR30-7R-12PD(31)
Part Number HR30-8J-12S(71) HR30-8PB-12P HR30-8P-12P(71) HR30-7R-12PD(31)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Hirose Electric Co Ltd
Base Product Number - DAC34H84 MAX500 ADS62P42
Shell Finish - - - -
Orientation - - - -
Material Flammability Rating - - - -
Contact Finish Thickness - Mating - - - -
Backshell Material, Plating - - - -
Primary Material - - - -
Contact Material - - - -
Insert Material - - - -
Fastening Type - - - -
Shielding - - - -
Mounting Feature - - - -
Shell Size, MIL - - - -
Shell Material - - - -
Contact Finish - Mating - - - -
Color - - - -
Ingress Protection - - - -
Connector Type - - - -
Number of Positions - - - -
Cable Opening - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Current Rating (Amps) - - - -
Features - - - Simultaneous Sampling
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Applications - - - -
Termination - - - -
Shell Size - Insert - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Voltage Rating - - - -
Series - - - -

HR30-8JB-12S Datasheet PDF

Download HR30-8JB-12S pdf datasheets and Hirose Electric Co Ltd documentation for HR30-8JB-12S - Hirose Electric Co Ltd.

Datasheets
HR30 Overmold Wiring Procedure.pdf HR30 Series, Overmold.pdf HR30-8JB-12S Drawing.pdf
PCN Design/Specification
Mult devs Material manufacturer chg 23/AUG/2018.pdf
