Specifications

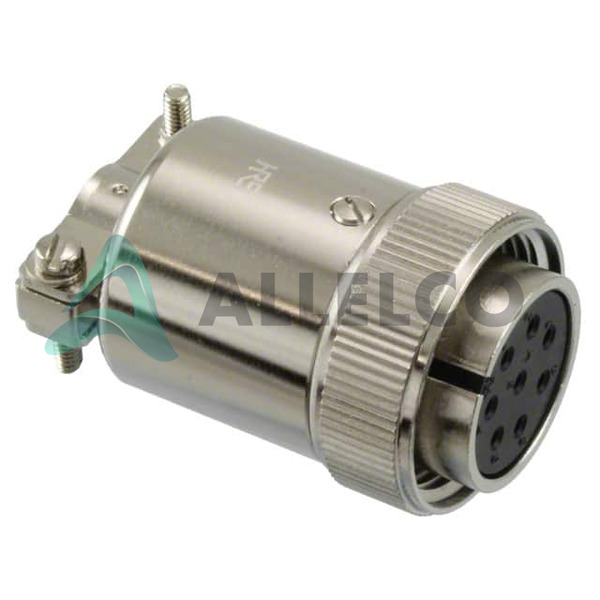

RM15TP-8S(71) Tech Specifications
Hirose Electric Co Ltd - RM15TP-8S(71) technical specifications, attributes, parameters and parts with similar specifications to Hirose Electric Co Ltd - RM15TP-8S(71)
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Hirose |
|
| Voltage Rating |
500VAC, 700VDC |
|
| Termination |
Solder Cup |
|
| Shielding |
- |
|
| Shell Size, MIL |
- |
|
| Shell Size - Insert |
15 |
|
| Shell Material |
Brass |
|
| Shell Finish |
Nickel |
|
| Series |
RM |
|
| Primary Material |
Metal |
|
| Package |
Bulk |
|
| Orientation |
Keyed |
|
| Operating Temperature |
-25°C ~ 85°C |
|
| Number of Positions |
8 |
|
| Mounting Type |
Free Hanging (In-Line) |
|
| Mounting Feature |
- |
|
| Product Attribute |
Attribute Value
| |
| Material Flammability Rating |
UL94 V-0 |
|
| Insert Material |
Diallyl Phthalate (DAP) |
|
| Ingress Protection |
- |
|
| Features |
Backshell, Cable Clamp, Coupling Nut |
|
| Fastening Type |
Threaded |
|
| Current Rating (Amps) |
5A |
|
| Contact Material |
Copper Alloy |
|
| Contact Finish Thickness - Mating |
196.9µin (5.00µm) |
|
| Contact Finish - Mating |
Silver |
|
| Connector Type |
Plug, Female Sockets |
|
| Color |
Silver |
|
| Cable Opening |
0.453" (11.51mm) |
|
| Base Product Number |
RM15TP |
|
| Backshell Material, Plating |
Brass, Nickel |
|
| Applications |
- |
|
