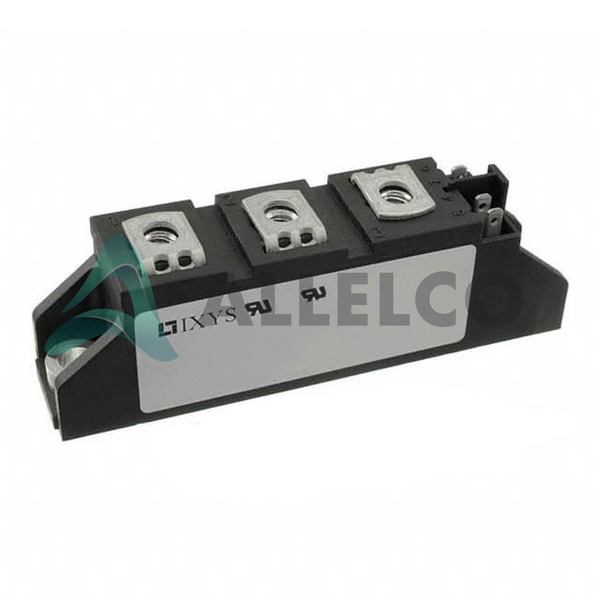

Manufacturer Part Number
MCMA25PD1200TB
Manufacturer
littelfuse
Introduction
This product is a series connection SCR/Diode module designed for high voltage and current applications, featuring a robust structure for efficient power control.
Product Features and Performance
Series Connection SCR/Diode Structure
Capable of handling 1.2 kV off-state voltage
On-state current capability up to 25 A (average) and 40 A (RMS)
Gate trigger voltage maximum of 1.5 V
Gate trigger current maximum of 55 mA
Non-repetitive surge current up to 400A (50Hz), 430A (60Hz)
Hold current maximum of 100 mA
Operating temperature range from -40°C to 140°C
Chassis mount with TO-240AA package
Product Advantages
High voltage and current handling capabilities for robust applications
Efficient thermal performance extending product lifetime
Low gate trigger current for easier control and activation
High surge current capacity for tough conditions
Wide operating temperature range suitable for various environments
Key Technical Parameters
Voltage Off State: 1.2 kV
Current On State (It (AV)) (Max): 25 A
Current On State (It (RMS)) (Max): 40 A
Voltage Gate Trigger (Vgt) (Max): 1.5 V
Current Gate Trigger (Igt) (Max): 55 mA
Current Non Rep. Surge 50/60Hz (Itsm): 400A/430A
Current Hold (Ih) (Max): 100 mA
Operating Temperature: -40°C ~ 140°C
Quality and Safety Features
Designed to meet stringent quality standards
Provides reliable and safe operation under high stress conditions
Compatibility
Compatible with high voltage and current applications requiring series connection SCR/Diode configurations
Application Areas
Industrial power control
Electric motor drives
Power supplies
Automotive electronics
Renewable energy systems
Product Lifecycle
Currently Active
Not nearing discontinuation, with ongoing support and availability
Several Key Reasons to Choose This Product
High voltage and current handling capabilities suitable for industrial applications
Robust design with high surge capacity for reliability
Efficient control with low trigger current
Wide operating temperature range, ensuring performance in various environments
Compliant with strict quality and safety standards for confidence in operation
