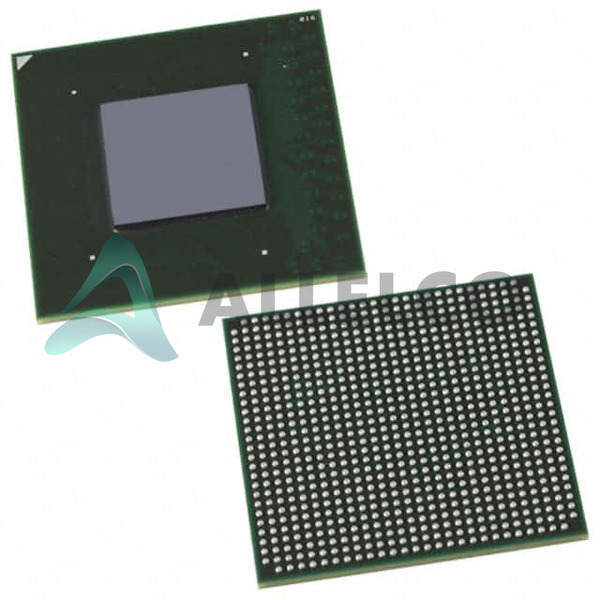

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

EP2AGX125EF29C6 - Intel

Name: Intel EP2AGX125EF29C6
Brand: Intel
SKU: EP2AGX125EF29C6
Availability: InStock
Rating: 5 (8 reviews)

Manufacturer Part Number: EP2AGX125EF29C6

Manufacturer: Intel

Allelco Part Number: 98D-EP2AGX125EF29C6

Warranty: 1 Year Allelco Warranty - Find out more

Stock Status:: 16,312 pcs available, New & Original

Parts Description: IC FPGA 372 I/O 780FBGA

Package: 780-FBGA (29x29)

Data sheet: EP2AGX125EF29C6.pdf

Datasheets
Arria II Device Handbook Vol 1.pdf Virtual JTAG Megafuntion Guide.pdf

Manuals
2.73KHz.pdf

Errata
2.73KHz.pdf

RoHs Status

~~Compare~~

Our certification

In stock: 16312

Specifications

EP2AGX125EF29C6 Tech Specifications
Intel - EP2AGX125EF29C6 technical specifications, attributes, parameters and parts with similar specifications to Intel - EP2AGX125EF29C6

Product Attribute	Attribute Value
Manufacturer	Intel
Voltage - Supply	0.87V ~ 0.93V
Total RAM Bits	8315904
Supplier Device Package	780-FBGA (29x29)
Series	Arria II GX
Package / Case	780-BBGA, FCBGA
Package	Tray

Product Attribute	Attribute Value
Operating Temperature	0°C ~ 85°C (TJ)
Number of Logic Elements/Cells	118143
Number of LABs/CLBs	4964
Number of I/O	372
Mounting Type	Surface Mount
Base Product Number	EP2AGX125

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN	3A991D
HTSUS	8542.39.0001

Parts with Similar Specifications

The three parts on the right have similar specifications to Intel EP2AGX125EF29C6

Product Attribute
Part Number	EP2AGX125EF29C6N	EP2AGX125EF29C6G	EP2AGX125EF29C6ES	EP2AGX125EF29C5NES
Manufacturer	Intel	Intel	Intel	Intel
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Series	-	-	-	-
Number of Logic Elements/Cells	-	-	-	-
Total RAM Bits	-	-	-	-
Number of I/O	-	-	-	-
Voltage - Supply	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Number of LABs/CLBs	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)

EP2AGX125EF29C6 Datasheet PDF

Download EP2AGX125EF29C6 pdf datasheets and Intel documentation for EP2AGX125EF29C6 - Intel.

Datasheets: Arria II Device Handbook Vol 1.pdf Virtual JTAG Megafuntion Guide.pdf
Manuals: 2.73KHz.pdf
Errata: 2.73KHz.pdf
