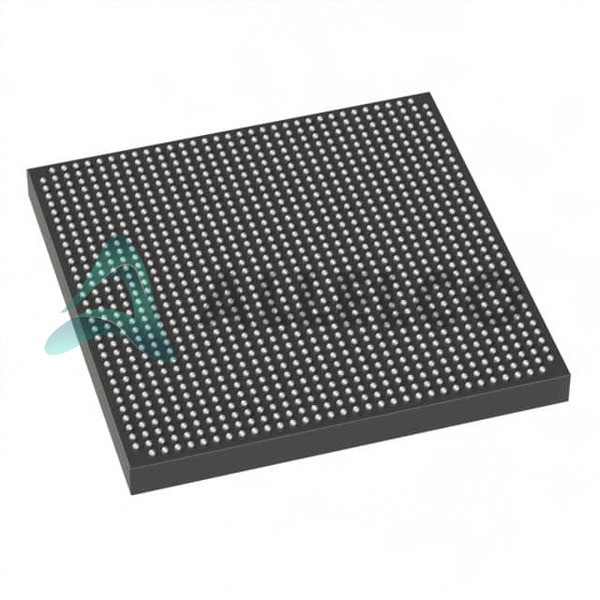

Manufacturer Part Number
EP4SGX230HF35C4N
Manufacturer
Intel
Introduction
The EP4SGX230HF35C4N is part of Intel's Stratix® IV GX series, specifically designed for embedded FPGA applications. Despite its obsolete status, it has been a choice for high-performance, high-density projects requiring programmable logic solutions.
Product Features and Performance
Embodies 9120 Logic Array Blocks (LABs) and a total of 228,000 Logic Elements/Cells for complex programmable logic.
Equipped with 17,544,192 total RAM bits for extensive memory capabilities.
Supports 564 I/O pins allowing for versatile connectivity options.
Operates efficiently with a supply voltage range from 0.87V to 0.93V.
Suitable for surface mount technology, facilitating integration into a variety of board designs.
Operates within a temperature range of 0°C to 85°C, ensuring reliability across diverse environments.
Product Advantages
High logic element density for complex designs in a single chip.
Extensive memory and I/O support enhance functionality and versatility.
Low voltage operation helps in reducing power consumption.
Surface mount technology compatibility eases the manufacture and assembly processes.
Key Technical Parameters
Number of LABs/CLBs: 9120
Logic Elements/Cells: 228,000
Total RAM Bits: 17,544,192
Number of I/O: 564
Voltage Supply: 0.87V ~ 0.93V
Operating Temperature: 0°C ~ 85°C
Quality and Safety Features
The device is manufactured by Intel, ensuring high-quality standards and reliability. Operates within a safe temperature range to maintain performance stability.
Compatibility
The product’s surface mount design and I/O count make it compatible with a broad range of PCBs and devices, emphasizing its adaptability for different applications.
Application Areas
Designed for embedded FPGA applications, its high-density logic elements suit it for advanced digital processing, telecommunications, and high-speed computing tasks.
Product Lifecycle
This product is marked as obsolete, indicating it's nearing the end of its production lifecycle. Potential users should seek replacements or consider upgrades for future compatibility.
Several Key Reasons to Choose This Product
Trusted manufacturer: Intel's reputation for quality and reliability.
High logic and memory capacities are ideal for sophisticated projects.
Low voltage operation and surface mount compatibility offer efficiency and ease of integration.
Versatile I/O connectivity meets various design requirements.
Though obsolete, its performance features may still suit specific legacy system needs.
