HomeProductsConnectors, InterconnectsCircular Connectors - HousingsJN2DS10SL1-R

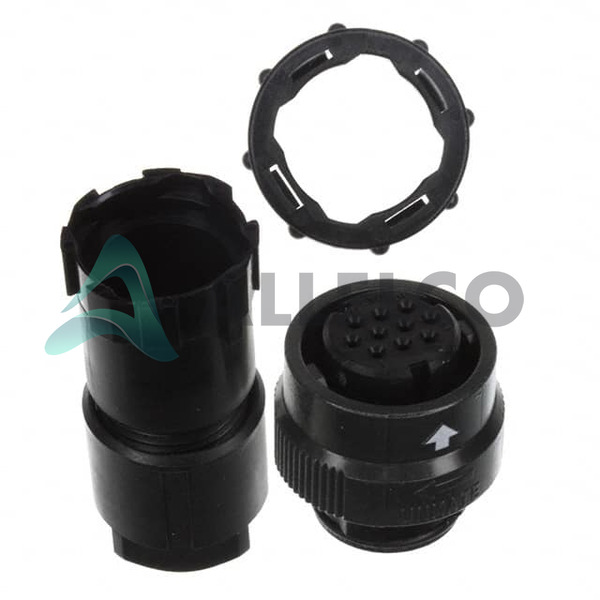

JN2DS10SL1-R Image
JN2DS10SL1-R Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

JN2DS10SL1-R - JAE Electronics

Manufacturer Part Number
JN2DS10SL1-R
Manufacturer
JAE Electronics
Allelco Part Number
98D-JN2DS10SL1-R
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN PLG HSG FMALE 10POS INLINE
Package
Tray
Data sheet
1.JN2DS10SL1-R.pdf ...
RoHs Status
RoHS Compliant
Compare
Our certification
In stock: 43797
  • Unit Price: $12.121
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $12.121 $12.12
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

JN2DS10SL1-R Tech Specifications
JAE Electronics - JN2DS10SL1-R technical specifications, attributes, parameters and parts with similar specifications to JAE Electronics - JN2DS10SL1-R

Product Attribute Attribute Value
Manufacturer JAE Electronics
Type For Female Sockets
Shielding Unshielded
Shell Size, MIL -
Shell Size - Insert S
Shell Material Zinc Alloy
Shell Finish Zinc
Series JN2
Package Tray
Orientation N (Normal)
Operating Temperature -20°C ~ 100°C
Number of Positions 10
Note Contacts Not Included
Mounting Type Free Hanging (In-Line)
Product Attribute Attribute Value
Mounting Feature -
Material Flammability Rating -
Insert Material Synthetic Resin
Ingress Protection IP67 - Dust Tight, Waterproof
Includes -
Housing Color Black
Features Backshell, Coupling Nut
Fastening Type Push-Twist
Contact Type Crimp
Contact Size 22
Contact Shape Circular
Connector Type Plug Housing
Base Product Number JN2DS10S

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180

Parts with Similar Specifications

The three parts on the right have similar specifications to JAE Electronics JN2DS10SL1-R

Product Attribute JN2DS10SL3-R JN2DS10SL2-R JN2DS10SLN-R JN2DW15SL1
Part Number JN2DS10SL3-R JN2DS10SL2-R JN2DS10SLN-R JN2DW15SL1
Manufacturer JAE Electronics JAE Electronics JAE Electronics JAE Electronics
Mounting Feature - - - -
Fastening Type - - - -
Contact Type - - - -
Material Flammability Rating - - - -
Orientation - - - -
Connector Type - - - -
Contact Size - - - -
Shell Finish - - - -
Shielding - - - -
Ingress Protection - - - -
Housing Color - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Mounting Type - Surface Mount Through Hole Surface Mount
Includes - - - -
Series - - - -
Note - - - -
Insert Material - - - -
Features - - - Simultaneous Sampling
Number of Positions - - - -
Contact Shape - - - -
Shell Size, MIL - - - -
Type - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Shell Size - Insert - - - -
Shell Material - - - -
