Specifications

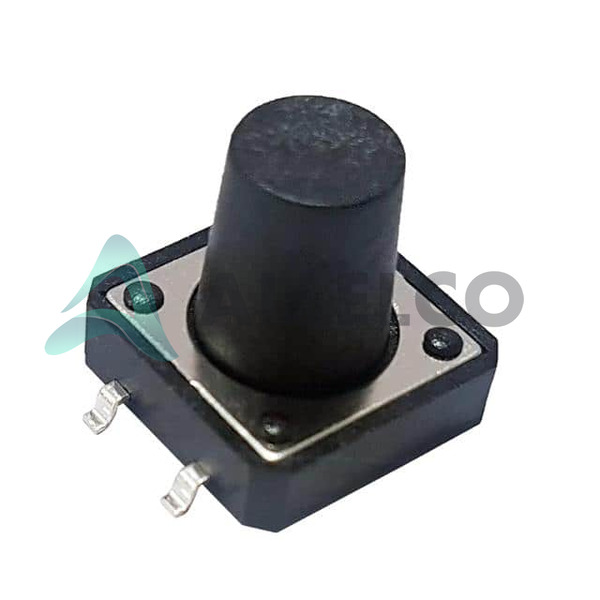

JST1103SD-3 Tech Specifications
JS SWITCH - JST1103SD-3 technical specifications, attributes, parameters and parts with similar specifications to JS SWITCH - JST1103SD-3
| Product Attribute |
Attribute Value
| |
| Manufacturer |
JS SWITCH |
|
| Termination Style |
Gull Wing |
|
| Switch Travel |
0.30mm |
|
| Switch Function |
Off-Mom |
|
| Series |
JST |
|
| Package |
Spool |
|
| Outline |
12.00mm x 12.00mm |
|
| Operating Temperature |
- |
|
| Operating Force |
250gf |
|
| Mounting Type |
Surface Mount |
|
| Mechanical Life |
80,000 Cycles |
|
| Ingress Protection |
- |
|
| Product Attribute |
Attribute Value
| |
| Illumination Voltage (Nominal) |
- |
|
| Illumination Type, Color |
- |
|
| Illumination |
Non-Illuminated |
|
| Features |
- |
|
| Contact Rating @ Voltage |
0.05A @ 12VDC |
|
| Circuit |
SPST-NO |
|
| Base Product Number |
JST1103 |
|
| Actuator Type |
Round Button |
|
| Actuator Orientation |
Top Actuated |
|
| Actuator Material |
- |
|
| Actuator Length, Right Angle |
- |
|
| Actuator Height off PCB, Vertical |
12.00mm |
|
