HomeProductsConnectors, InterconnectsRectangular Connectors - Headers, Male PinsBM10B-SRSS-TB

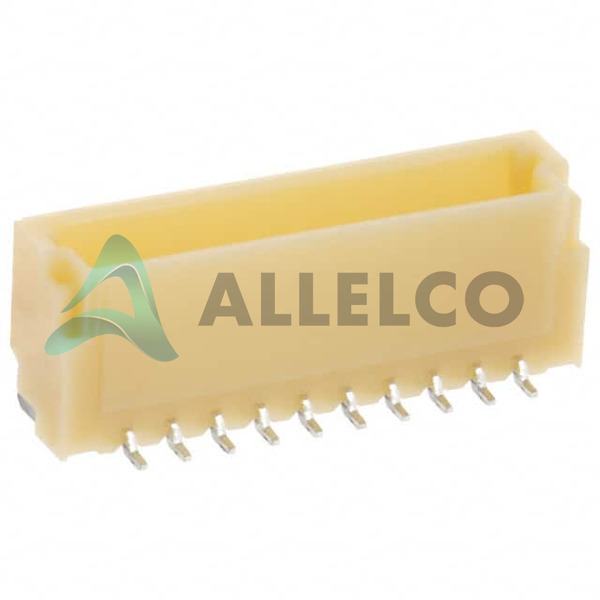

BM10B-SRSS-TB Image
BM10B-SRSS-TB Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

BM10B-SRSS-TB - JST Sales America Inc.

Manufacturer Part Number
BM10B-SRSS-TB
Manufacturer
JST
Allelco Part Number
32D-BM10B-SRSS-TB
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN HEADER SMD 10POS 1MM
Package
Tape & Reel (TR)
Data sheet
1.BM10B-SRSS-TB.pdf ...
Compare
Our certification
In stock: 5410

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

BM10B-SRSS-TB Tech Specifications
JST Sales America Inc. - BM10B-SRSS-TB technical specifications, attributes, parameters and parts with similar specifications to JST Sales America Inc. - BM10B-SRSS-TB

Product Attribute Attribute Value
Manufacturer JST
Voltage Rating 50V
Termination Solder
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Series SH/SR
Row Spacing - Mating -
Pitch - Mating 0.039' (1.00mm)
Package Tape & Reel (TR)
Overall Contact Length -
Operating Temperature -25°C ~ 85°C
Number of Rows 1
Number of Positions Loaded All
Number of Positions 10
Mounting Type Surface Mount
Material Flammability Rating UL94 V-0
Mated Stacking Heights 4.9mm
Insulation Material Polyamide (PA), Nylon
Product Attribute Attribute Value
Insulation Height 0.167' (4.25mm)
Insulation Color Natural
Ingress Protection -
Features Solder Retention
Fastening Type Push-Pull
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Shape Square
Contact Material Copper Alloy
Contact Length - Post -
Contact Length - Mating -
Contact Finish Thickness - Post -
Contact Finish Thickness - Mating -
Contact Finish - Post Tin-Lead
Contact Finish - Mating Tin-Lead
Connector Type Header
Applications -

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040

Parts Introduction

Manufacturer Part Number

BM10B-SRSS-TB

Manufacturer

jst

Introduction

The BM10B-SRSS-TB is a rectangular connector header with male pins from JST. It features a shrouded design with a 1x10 pin configuration and a pitch of 1.00mm. This connector is designed for board-to-cable/wire applications and utilizes a push-pull fastening mechanism.

Product Features and Performance

1x10 pin configuration with 1.00mm pitch

Shrouded design with 4-wall protection

Surface mount termination with solder connection

Tin-plated copper alloy contacts

Operating temperature range of -25°C to 85°C

UL94 V-0 flammability rating

Current rating of 1A and voltage rating of 50V

Mated stacking height of 4.9mm

Product Advantages

Secure push-pull fastening mechanism

Shrouded design for enhanced protection

Tin-plated contacts for reliable electrical performance

Compact size and surface mount compatibility

Key Reasons to Choose This Product

Robust and reliable connector solution for board-to-cable/wire applications

Compact and space-saving design

Excellent electrical and thermal performance

Ease of installation with push-pull fastening

Quality and Safety Features

Complies with UL94 V-0 flammability standard

Tin-plated contacts for corrosion resistance

Polyamide (PA) and nylon insulation materials

Compatibility

This connector is compatible with various cable and wire assemblies that match the 1.00mm pitch and 1x10 pin configuration.

Application Areas

Electronics and electrical equipment

Industrial automation and control systems

Medical devices

Telecommunication equipment

Product Lifecycle

The BM10B-SRSS-TB is an active product, and there are no immediate plans for discontinuation. However, customers are advised to contact our website's sales team for the latest information on availability and any potential alternative models.

Parts with Similar Specifications

The three parts on the right have similar specifications to JST Sales America Inc. BM10B-SRSS-TB

Product Attribute BM10B-SRSS-TB(LF)(SN) BM10B-SRSS-TBT(LF)(SN) BM10B-NSHSS-TBT (LF)(SN) BM10B-SURS-TF(LF)(SN)
Part Number BM10B-SRSS-TB(LF)(SN) BM10B-SRSS-TBT(LF)(SN) BM10B-NSHSS-TBT (LF)(SN) BM10B-SURS-TF(LF)(SN)
Manufacturer JST Sales America Inc. JST Sales America Inc. JST Sales America Inc. JST Sales America Inc.
Termination - - - -
Contact Finish Thickness - Post - - - -
Row Spacing - Mating - - - -
Number of Positions Loaded - - - -
Ingress Protection - - - -
Insulation Material - - - -
Voltage Rating - - - -
Series - - - -
Number of Positions - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Material Flammability Rating - - - -
Contact Type - - - -
Overall Contact Length - - - -
Contact Length - Mating - - - -
Features - - - Simultaneous Sampling
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Number of Rows - - - -
Style - - - -
Fastening Type - - - -
Insulation Height - - - -
Shrouding - - - -
Contact Finish - Post - - - -
Contact Finish Thickness - Mating - - - -
Pitch - Mating - - - -
Mated Stacking Heights - - - -
Connector Type - - - -
Contact Material - - - -
Current Rating (Amps) - - - -
Contact Finish - Mating - - - -
Insulation Color - - - -
Applications - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Contact Length - Post - - - -
Contact Shape - - - -
