Manufacturer Part Number

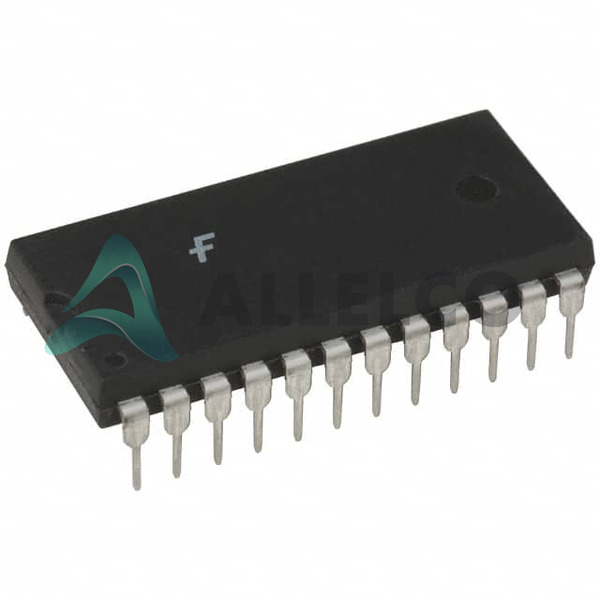

74F181PC
Manufacturer
onsemi
Introduction
The onsemi 74F181PC is a high-performance 4-bit Arithmetic Logic Unit (ALU) that can perform a wide range of arithmetic and logical operations. It is designed for use in digital systems, such as microprocessors, minicomputers, and other digital equipment.
Product Features and Performance
4-bit ALU with 16 different logic and arithmetic functions
Propagate and generate logic for high-speed carry operations
Fully TTL-compatible input and output levels
Wide supply voltage range of 4.5V to 5.5V
Operating temperature range of 0°C to 70°C
Through-hole mounting for easy installation
Product Advantages
Versatile functionality with 16 different logic and arithmetic operations
High-speed carry propagation for efficient arithmetic calculations
Wide operating voltage and temperature ranges for flexible system design
Reliable TTL-compatible interfaces for seamless integration
Key Reasons to Choose This Product
Robust and reliable performance for critical digital system components
Compact and efficient design for space-constrained applications
Long-standing reputation and expertise of onsemi in logic device manufacturing
Availability of technical support and resources from the manufacturer
Quality and Safety Features
Rigorous quality control and testing procedures
Compliance with relevant safety and environmental standards
Compatibility
The onsemi 74F181PC is compatible with a wide range of digital systems and can be easily integrated into various circuit designs.
Application Areas
Microprocessor-based systems
Digital signal processing
Computer arithmetic operations
Industrial control and automation
Product Lifecycle
The onsemi 74F181PC is an obsolete product, which means it is no longer in active production. However, there may be equivalent or alternative models available from onsemi or other manufacturers. Customers are advised to contact our website's sales team for more information on suitable replacement options.
