Manufacturer Part Number
ADC08D500CIYB
Manufacturer
Texas Instruments
Introduction
The ADC08D500CIYB is a high-speed, dual 8-bit analog-to-digital converter designed for data acquisition systems, enabling precise conversion of analog signals to digital data.
Product Features and Performance
Dual channel operation with simultaneous sampling
8-bit resolution
High sampling rate of 500 MSPS
Differential input type
Internal reference voltage
Folding Interpolating architecture
LVDS parallel data interface
Simultaneous Sampling feature
Product Advantages
High-speed data conversion capable of meeting demanding system requirements
Minimal data skew due to simultaneous sampling

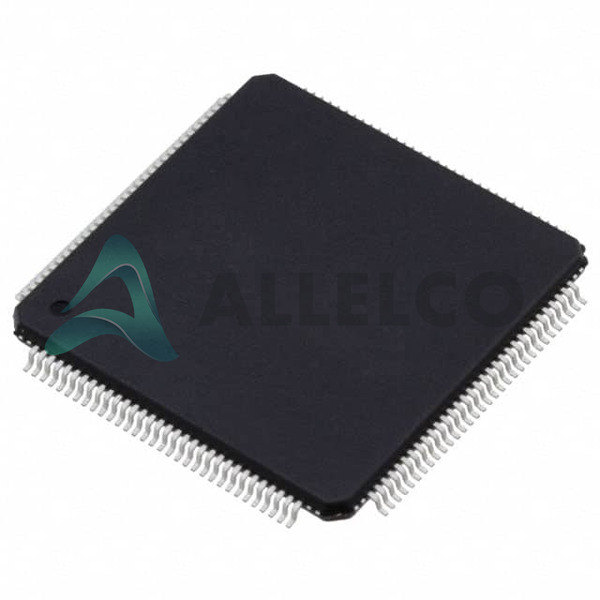

Compact 128-HLQFP package suited for space-constrained applications
Key Technical Parameters
Number of Bits: 8
Sampling Rate (Per Second): 500M
Number of Inputs: 2
Input Type: Differential
Data Interface: LVDS Parallel
Voltage Supply, Analog: 1.8V ~ 2V
Voltage Supply, Digital: 1.8V ~ 2V
Operating Temperature: -40°C ~ 85°C
Quality and Safety Features
Robust operational temperature range from -40°C to 85°C
Internal reference enhances stability and precision
Compatibility
Compatible with surface mount technology for PCB integration
LVDS interface supports high-speed data transmission
Application Areas
Telecommunications
Digital oscilloscopes
Radar and satellite systems
Data acquisition systems
Product Lifecycle
Obsolete status
Limited availability, potential need for replacement or upgrade considerations
Several Key Reasons to Choose This Product
Exceptionally high sampling rate ideal for real-time signal processing
Dual ADCs reduce system complexity by handling multiple channels simultaneously
Low voltage operation reduces power consumption
High temperature tolerance ensures reliability in varying environments
