Manufacturer Part Number
ADC101S101CIMF
Manufacturer
Texas Instruments
Introduction
The ADC101S101CIMF is a high-speed, 10-bit analog-to-digital converter (ADC) from Texas Instruments designed for data acquisition systems.
Product Features and Performance
10-bit resolution
1 MSPS (Mega Samples Per Second) sampling rate
Single analog input
Single-ended input type
SPI and DSP compatible data interface
Sample-and-Hold (S/H) to ADC ratio of 1:1
SAR (Successive Approximation Register) architecture
Works with supply as the reference voltage
Product Advantages
High-speed ADC suited for fast data acquisition
Simple interface compatible with most DSP and microcontrollers
Low voltage supply requirements (2.7V to 5.25V)

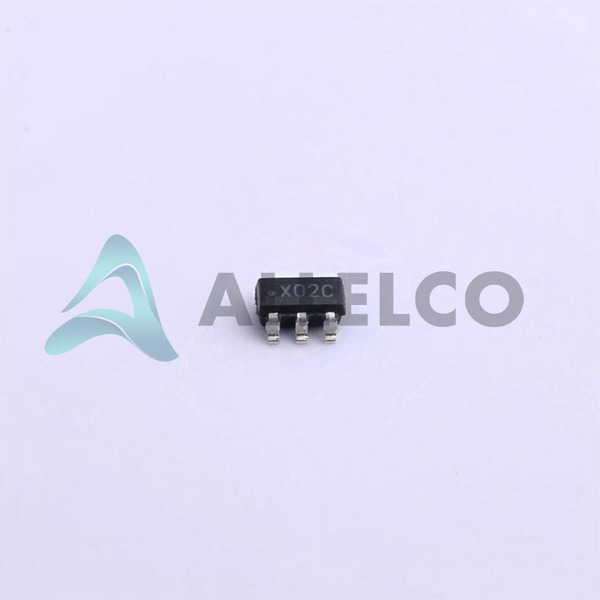

Compact SOT-23-6 package for space-constrained applications
Key Technical Parameters
Number of Bits: 10
Sampling Rate: 1M samples/second
Number of Inputs: 1
Input Type: Single Ended
Data Interface: SPI, DSP
Configuration: S/H-ADC
Architecture: SAR
Voltage - Supply, Analog: 2.7V to 5.25V
Voltage - Supply, Digital: 2.7V to 5.25V
Quality and Safety Features
Operating temperature range from -40°C to 85°C allows for reliable operation in extreme conditions
Compatibility
SPI and DSP interface compatibility for easy integration with existing systems
Application Areas
Data acquisition systems
Portable instruments
Medical and scientific research equipment
Product Lifecycle
Obsolete status, meaning the product is in end-of-life and not recommended for new designs
Potential availability of replacements or upgrades through Texas Instruments' product range
Several Key Reasons to Choose This Product
Fast, precise 10-bit ADC performance for accurate data capture
Compatible with a wide range of digital systems through SPI/DSP
Low power requirements allowing for use in portable devices
High-reliability performance within an industrial temperature range
Surface mount SOT-23-6 package suitable for compact PCB designs
