Manufacturer Part Number

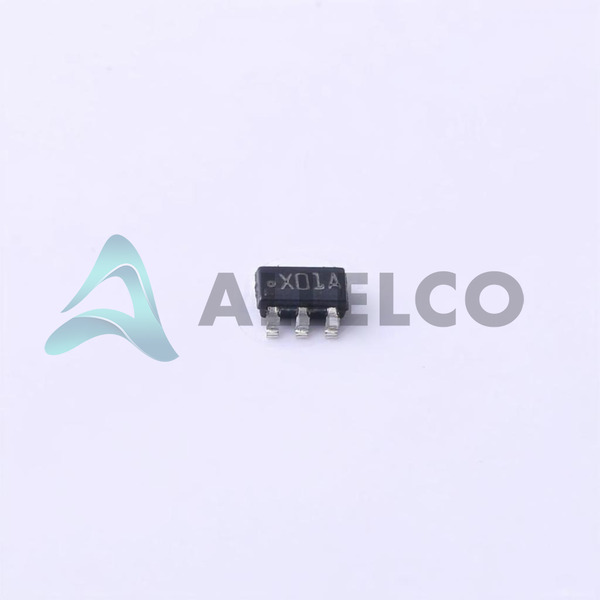

ADCS7476AIMF
Manufacturer
Texas Instruments
Introduction
The ADCS7476AIMF is a high-performance, low-power, 12-bit analog-to-digital converter from Texas Instruments, featuring a maximum sampling rate of 1M samples per second.
Product Features and Performance
12-bit resolution
High-speed sampling rate up to 1M samples per second
Single-ended input
SPI and DSP compatible data interface
Sample-and-Hold Amplifier (S/H-ADC) configuration
Successive Approximation Register (SAR) architecture
Operates on a supply voltage from 2.7V to 5.25V
Supports a wide operating temperature range from -40°C to 125°C
Product Advantages
High resolution and fast sampling rate improve accuracy and response time in measurement applications.
Low power consumption enhances efficiency in portable and remote sensing devices.
Flexible power supply requirements accommodate a wide range of applications.
Simplified digital interface compatible with most microcontrollers and DSPs.
Key Technical Parameters
Number of Bits: 12
Sampling Rate (Per Second): 1M
Number of Inputs: 1 (Single Ended)
Data Interface: SPI, DSP
Voltage Supply, Analog: 2.7V ~ 5.25V
Voltage Supply, Digital: 2.7V ~ 5.25V
Operating Temperature: -40°C ~ 125°C
Quality and Safety Features
Constructed using Texas Instruments' renowned manufacturing processes ensuring high reliability and performance.
Wide operating temperature range supports use in harsh environmental conditions.
Compatibility
SPI and DSP interfaces provide compatibility with a broad range of microcontrollers and digital signal processors.
Single-ended input supports straightforward integration with sensors and other signal sources.
Application Areas
Industrial process control
Portable instrumentation
Data acquisition systems
Battery-powered devices
Medical equipment
Product Lifecycle
Status: Last Time Buy
Note: Customers are advised to consider future needs when purchasing, as replacements or upgrades might be limited.
Several Key Reasons to Choose This Product
High-speed, high-resolution ADC enhances precision in critical applications.
Low power consumption is ideal for battery-operated devices.
Broad compatibility with microcontrollers and DSPs speeds up development time.
Reliable performance from a trusted manufacturer like Texas Instruments.
Availability in Tape & Reel packaging supports efficient high-volume manufacturing.
