Manufacturer Part Number

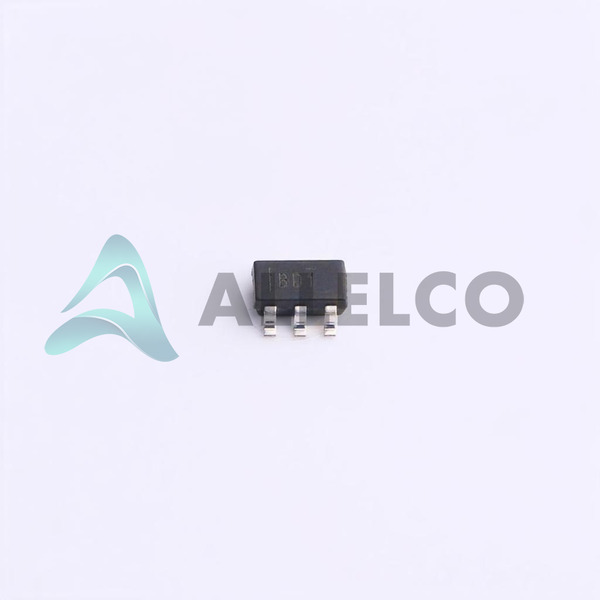

ADS1000A1IDBVR
Manufacturer
Texas Instruments
Introduction
The ADS1000A1IDBVR is a high-precision, 12-bit Analog to Digital Converter (ADC) with a built-in Programmable Gain Amplifier (PGA), offering a sampling rate of 128 samples per second.
Product Features and Performance
12-bit resolution
Sampling rate of 128 samples per second
Support for a single differential or single-ended input
I2C data interface for easy digital connectivity
Integrated PGA for signal-conditioning
Sigma-Delta architecture for high accuracy measurements
Operates with a supply voltage range from 2.7V to 5.5V
Features include a PGA and selectable I2C addressing
Operating temperature range from -40°C to 125°C
Product Advantages
Compact SOT-23-6 package suitable for space-constrained applications
High accuracy and low power consumption ideal for portable devices
Built-in PGA offers flexibility in measuring smaller voltage signals
Wide operating temperature range ensuring reliability in extreme conditions
Simple digital interface through I2C simplifies system design
Key Technical Parameters
Number of Bits: 12
Sampling Rate (Per Second): 128
Number of Inputs: 1
Input Type: Differential, Single Ended
Data Interface: I2C
Voltage Supply, Analog: 2.7V ~ 5.5V
Voltage Supply, Digital: 2.7V ~ 5.5V
Architecture: Sigma-Delta
Reference Type: Supply
Quality and Safety Features
Reliable performance confirmed through Texas Instruments' stringent quality testing processes
Compatibility
Compatible with various microcontrollers that support I2C interface
Flexible power supply compatibility (2.7V ~ 5.5V) for easy integration into various circuit designs
Application Areas
Portable instrumentation
Battery-powered devices
Data acquisition systems
Consumer electronics
Industrial control
Product Lifecycle
Product status: Active
Not nearing discontinuation, with Texas Instruments typically offering long-term product support
Several Key Reasons to Choose This Product
High precision ADC suitable for a variety of applications requiring accurate digital representation of analog signals
Texas Instruments' reputation for quality and reliability ensures trust in product performance and longevity
The flexibility offered by features such as the built-in PGA and selectable I2C address make for an adaptable component in system design
Support for wide operating temperatures makes it a robust choice for industrial or outdoor applications
Compact package and simple interfacing allow for convenient use in both prototyping and mass production environments
