HomeProductsIntegrated Circuits (ICs)Data Acquisition - Analog to Digital Converters (ADC)ADS1014IDGST

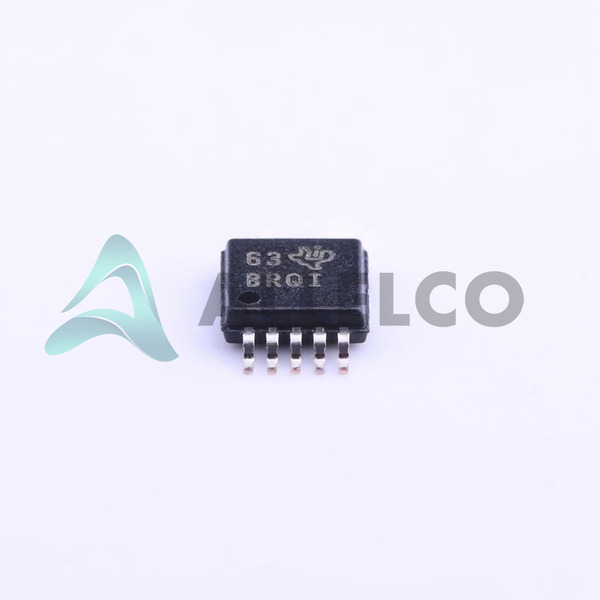

ADS1014IDGST Image
ADS1014IDGST Image - 1ADS1014IDGST Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

ADS1014IDGST - Texas Instruments

Manufacturer Part Number
ADS1014IDGST
Manufacturer
Texas Instruments
Allelco Part Number
32D-ADS1014IDGST
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC ADC 12BIT SIGMA-DELTA 10VSSOP
Package
10-VSSOP
Data sheet
1.ADS1014IDGST.pdf ...

PCN Design/Specification

ADS10yy DataSheet Update 27/Feb/2017.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 14313
  • Unit Price: $2.988
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $2.988 $2.99
10+ $2.616 $26.16
30+ $2.394 $71.82
250+ $2.17 $542.50
500+ $2.067 $1,033.50
1000+ $2.021 $2,021.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

ADS1014IDGST Tech Specifications
Texas Instruments - ADS1014IDGST technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - ADS1014IDGST

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Digital 2V ~ 5.5V
Voltage - Supply, Analog 2V ~ 5.5V
Supplier Device Package 10-VSSOP
Series -
Sampling Rate (Per Second) 3.3k
Reference Type Internal
Ratio - S/H:ADC -
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 125°C
Product Attribute Attribute Value
Number of Inputs 1, 2
Number of Bits 12
Number of A/D Converters 1
Mounting Type Surface Mount
Input Type Differential, Single Ended
Features PGA, Selectable Address
Data Interface I²C
Configuration MUX-PGA-ADC
Base Product Number ADS1014
Architecture Sigma-Delta

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

ADS1014IDGST

Manufacturer

Texas Instruments

Introduction

The ADS1014IDGST is a precision analog-to-digital converter (ADC) from Texas Instruments featuring 12-bit resolution and a sampling rate of up to 3.3k samples per second.

Product Features and Performance

12-bit resolution

Sampling rate of 3.3k samples per second

Single or dual inputs

Differential or single-ended input type

I2C data interface

Integrated multiplexer, programmable gain amplifier (MUX-PGA), and ADC

Internal reference voltage

Selectable I2C address feature

Sigma-Delta architecture

Product Advantages

High integration with MUX, PGA, and ADC in one package

Flexible with single-ended or differential inputs

Easy to interface with I2C-compatible devices

Programmable gain allows for a variety of input ranges

Suitable for high-temperature operation up to 125°C

Key Technical Parameters

Number of Bits: 12

Sampling Rate (Per Second): 3.3k

Number of Inputs: 1, 2

Input Type: Differential, Single Ended

Data Interface: I2C

Configuration: MUX-PGA-ADC

Number of A/D Converters: 1

Architecture: Sigma-Delta

Reference Type: Internal

Voltage - Supply, Analog: 2V ~ 5.5V

Voltage - Supply, Digital: 2V ~ 5.5V

Operating Temperature: -40°C ~ 125°C

Quality and Safety Features

High-temperature operational range ensuring reliability and stability

Quality design and manufacturing as per Texas Instruments' standards

Compatibility

Compatible with devices that support I2C communication

Suitable for surface mount technology (SMT)

Application Areas

Industrial control systems

Sensor interfacing and signal processing

Data acquisition systems

Portable instrumentation

Battery-powered devices

Product Lifecycle

Product Status: Active

ADS1014IDGST is currently not nearing discontinuation

Replacements or upgrades can be found in Texas Instruments' ADS product line if necessary

Several Key Reasons to Choose This Product

Precision 12-bit resolution for accurate signal conversion

Low power consumption ideal for portable and battery-operated devices

High level of integration for a simplified design and reduced footprint

Flexible input configuration supports a wide range of applications

Operability in extreme temperature conditions ranging from -40°C to 125°C

Produced by Texas Instruments, a trusted leader in semiconductor solutions

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments ADS1014IDGST

Product Attribute ADS1014IDGSR ADS1014IRUGT ADS1013IDGSR ADS1013IRUGT
Part Number ADS1014IDGSR ADS1014IRUGT ADS1013IDGSR ADS1013IRUGT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Input Type - - - Differential
Data Interface - LVDS - Parallel I²C LVDS - Parallel, Parallel
Voltage - Supply, Digital - 1.14V ~ 1.26V 11.4V ~ 16.5V 1.65V ~ 3.6V
Architecture - Current Source R-2R Pipelined
Voltage - Supply, Analog - 3.14V ~ 3.46V 11.4V ~ 16.5V 3V ~ 3.6V
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Reference Type - External, Internal External External, Internal
Mounting Type - Surface Mount Through Hole Surface Mount
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Features - - - Simultaneous Sampling
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Number of Inputs - - - 2
Number of A/D Converters - - - 2
Ratio - S/H:ADC - - - 1:1
Number of Bits - 16 8 14
Series - - - -
Sampling Rate (Per Second) - - - 65M
Configuration - - - S/H-ADC
Base Product Number - DAC34H84 MAX500 ADS62P42

ADS1014IDGST Datasheet PDF

Download ADS1014IDGST pdf datasheets and Texas Instruments documentation for ADS1014IDGST - Texas Instruments.

HTML Datasheet
ADS1013 - ADS1015 Datasheet.pdf
PCN Design/Specification
ADS10yy DataSheet Update 27/Feb/2017.pdf
PCN Assembly/Origin
ADSx/DACx/OPAx/TLVx 02/Jun/2022.pdf
