Manufacturer Part Number

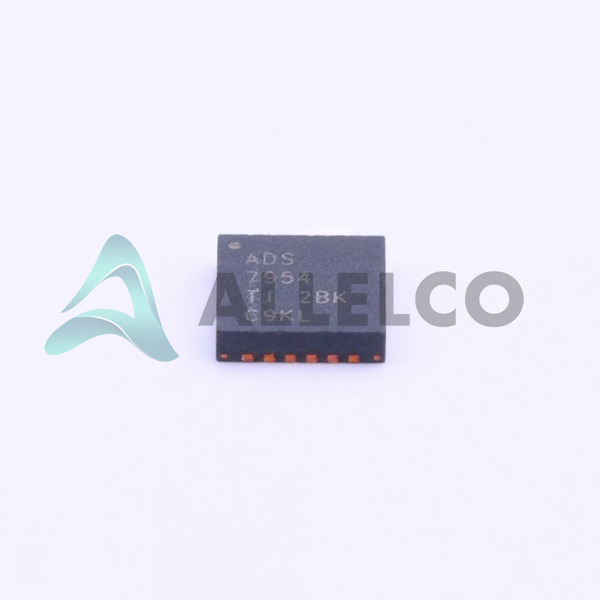

ADS7954SRGET
Manufacturer
Texas Instruments
Introduction
The ADS7954SRGET is a high-performance, 10-bit analog-to-digital converter (ADC) with a sampling rate of up to 1MSPS. It features four single-ended analog inputs, an integrated sample-and-hold, and a successive approximation register (SAR) architecture. The ADS7954SRGET is designed for a wide range of applications, including industrial control, process automation, and portable measurement systems.
Product Features and Performance
10-bit resolution
1MSPS sampling rate
4 single-ended analog inputs
Integrated sample-and-hold
SAR architecture
External reference
Wide supply voltage range: 2.7V to 5.25V (analog) and 1.7V to 5.25V (digital)
Low power consumption
Product Advantages
High-speed and high-resolution performance
Flexible input configuration with 4 single-ended channels
Wide operating voltage range for compatibility with various system designs
Integrated sample-and-hold for accurate data acquisition
SAR architecture for efficient power consumption
Key Reasons to Choose This Product
Exceptional performance and reliability for demanding applications
Versatile input options and configuration flexibility
Low power consumption for battery-powered or portable devices
Seamless integration into a wide range of system designs
Quality and Safety Features
Robust design and strict quality control during manufacturing
Compliance with industry standards for safety and reliability
Extended operating temperature range of -40°C to 125°C
Compatibility
Supports SPI communication interface
Compatible with various microcontrollers and processors
Application Areas
Industrial control and automation
Process monitoring and instrumentation
Portable measurement and data acquisition systems
Medical equipment
Robotics and automation
Product Lifecycle
The ADS7954SRGET is an active product, and our website's sales team regularly releases updated or equivalent models to meet the evolving market demands. If you require further information or need assistance with alternative products, please contact our website's sales team.
