HomeProductsIntegrated Circuits (ICs)PMIC - Voltage ReferenceATL431LIBIDBZR

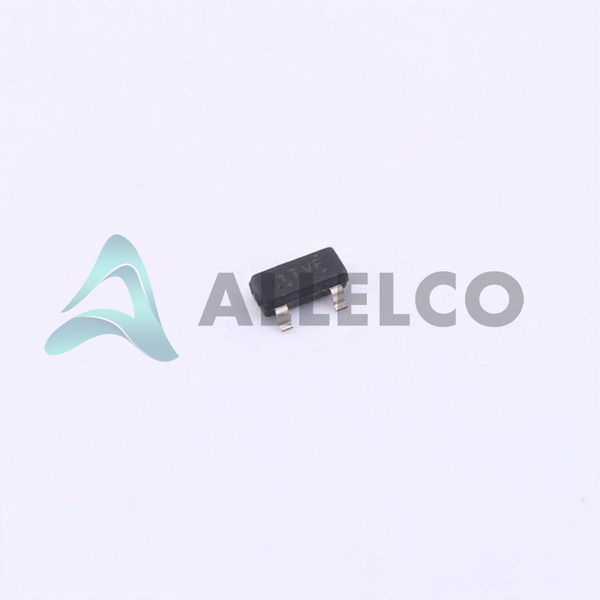

ATL431LIBIDBZR Image
ATL431LIBIDBZR Image - 1ATL431LIBIDBZR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

ATL431LIBIDBZR - Texas Instruments

Manufacturer Part Number
ATL431LIBIDBZR
Manufacturer
Texas Instruments
Allelco Part Number
32D-ATL431LIBIDBZR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC VREF SHUNT ADJ 0.5% SOT23-3
Package
SOT-23-3
Data sheet
1.ATL431LIBIDBZR.pdf ...
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 215120
  • Unit Price: $0.119
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
5+ $0.119 $0.60
50+ $0.116 $5.80
150+ $0.114 $17.10
500+ $0.113 $56.50
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

ATL431LIBIDBZR Tech Specifications
Texas Instruments - ATL431LIBIDBZR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - ATL431LIBIDBZR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 2.5V
Voltage - Output (Max) 36 V
Tolerance ±0.5%
Temperature Coefficient -
Supplier Device Package SOT-23-3
Series -
Reference Type Shunt
Package / Case TO-236-3, SC-59, SOT-23-3
Package Tape & Reel (TR)
Product Attribute Attribute Value
Output Type Adjustable
Operating Temperature -40°C ~ 85°C (TA)
Noise - 10Hz to 10kHz -
Noise - 0.1Hz to 10Hz -
Mounting Type Surface Mount
Current - Supply -
Current - Output 15 mA
Current - Cathode 100 µA
Base Product Number ATL431

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

ATL431LIBIDBZR

Manufacturer

Texas Instruments

Introduction

Voltage Reference IC for Precision Power Management

Product Features and Performance

Adjustable Shunt Reference

Output voltage ranging from 2.5V to 36V

Output current capability of 15 mA

Tolerance of ±0.5%

Product Advantages

High accuracy for critical applications

Supports a wide range of output voltages

Stable and reliable performance

Key Technical Parameters

Min/Max Output Voltage: 2.5V/36V

Output Current: 15 mA

Tolerance: ±0.5%

Operating Temperature: -40°C to 85°C

Current - Cathode: 100 µA

Mounting Type: Surface Mount

Package/Case: TO-236-3, SC-59, SOT-23-3

Quality and Safety Features

Excellent temperature stability

Robust construction suitable for industrial applications

Compatibility

Compatible with SOT-23-3 package mount

Application Areas

Power supplies

Data acquisition systems

Instrumentation

Consumer electronics

Product Lifecycle

Active status, not reported as nearing discontinuation

Several Key Reasons to Choose This Product

Precision voltage regulation for high-performance systems

Texas Instruments' reputation for quality and reliability

Flexible application due to wide output voltage range

Compact SOT-23-3 package for space-constrained designs

Suited for a variety of industrial and commercial products

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments ATL431LIBIDBZR

Product Attribute ATL431LIBQDBZRQ1 ATL431LIBQDBZR-S ATL431LIBQDBZR ATL431LIAIDBZR
Part Number ATL431LIBQDBZRQ1 ATL431LIBQDBZR-S ATL431LIBQDBZR ATL431LIAIDBZR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Base Product Number - DAC34H84 MAX500 ADS62P42
Output Type - Current - Unbuffered Voltage - Buffered -
Voltage - Output (Min/Fixed) - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Current - Supply - - - -
Tolerance - - - -
Series - - - -
Temperature Coefficient - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Current - Output - - - -
Current - Cathode - - - -
Noise - 0.1Hz to 10Hz - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Voltage - Output (Max) - - - -
Noise - 10Hz to 10kHz - - - -
Reference Type - External, Internal External External, Internal

ATL431LIBIDBZR Datasheet PDF

Download ATL431LIBIDBZR pdf datasheets and Texas Instruments documentation for ATL431LIBIDBZR - Texas Instruments.

HTML Datasheet
ATL431LI, ATL432LI Datasheet.pdf
