HomeProductsRF/IF and RFIDRF Transceiver ICsCC1101RGP

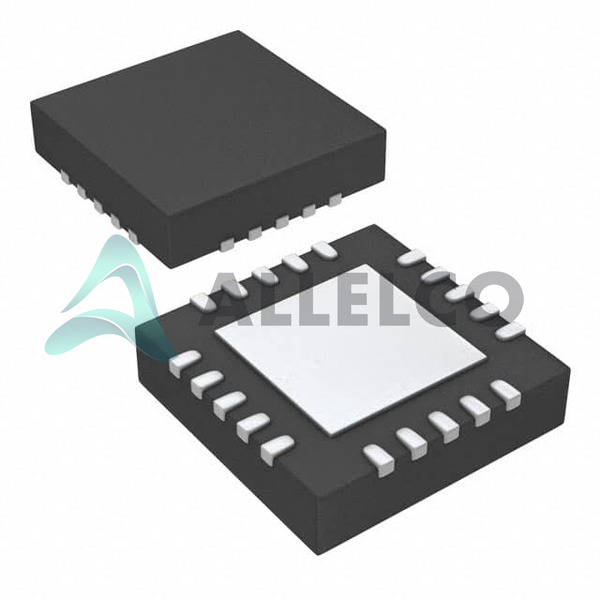

CC1101RGP Image
CC1101RGP Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

CC1101RGP - Texas Instruments

Manufacturer Part Number
CC1101RGP
Manufacturer
Texas Instruments
Allelco Part Number
32D-CC1101RGP
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC RF TXRX ISM<1GHZ 20VFQFN
Package
20-QFN (4x4)
Data sheet
1.CC1101RGP.pdf ...

PCN Design/Specification

Mult Dev Material Chg 29/Mar/2018.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 11071

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

CC1101RGP Tech Specifications
Texas Instruments - CC1101RGP technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - CC1101RGP

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 1.8V ~ 3.6V
Type TxRx Only
Supplier Device Package 20-QFN (4x4)
Series -
Serial Interfaces SPI
Sensitivity -116dBm
RF Family/Standard General ISM < 1GHz
Protocol -
Power - Output 12dBm
Package / Case 20-VFQFN Exposed Pad
Product Attribute Attribute Value
Package Tube
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Modulation 2FSK, 4FSK, ASK, GFSK, MSK, OOK
Memory Size -
Frequency 300MHz ~ 348MHz, 387MHz ~ 464MHz, 779MHz ~ 928MHz
Data Rate (Max) 600kbps
Current - Transmitting 12.3mA ~ 34.2mA
Current - Receiving 14.3mA ~ 17.1mA
Base Product Number CC1101

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A991B
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

CC1101RGP

Manufacturer

Texas Instruments

Introduction

Single-chip low-power, highly integrated RF transceiver IC for low-power wireless applications

Designed for the sub-1 GHz industrial, scientific and medical (ISM) and short-range device (SRD) frequency bands

Product Features and Performance

Supports 300MHz ~ 348MHz, 387MHz ~ 464MHz, 779MHz ~ 928MHz frequency bands

Wide operating temperature range of -40°C to 85°C

Highly integrated RF transceiver with configurable data rate up to 600kbps

Highly sensitive receiver with -116dBm sensitivity

Programmable output power up to 12dBm

Low current consumption: 12.3mA ~ 34.2mA in transmit mode, 14.3mA ~ 17.1mA in receive mode

Supports multiple modulation formats: 2FSK, 4FSK, ASK, GFSK, MSK, OOK

Includes SPI serial interface for configuration and control

Product Advantages

Excellent RF performance with high sensitivity and programmable output power

Ultra-low power consumption for extended battery life in wireless applications

Flexible frequency band and modulation support for use in various ISM/SRD applications

Small 20-QFN (4x4) package for compact design

Key Technical Parameters

Operating Voltage: 1.8V ~ 3.6V

Frequency Range: 300MHz ~ 348MHz, 387MHz ~ 464MHz, 779MHz ~ 928MHz

Operating Temperature: -40°C ~ 85°C

Package: 20-QFN (4x4), Tube

Mounting Type: Surface Mount

Quality and Safety Features

RoHS3 compliant

Designed and manufactured by a reputable industry leader, Texas Instruments

Compatibility

Suitable for various sub-1 GHz ISM/SRD wireless applications

Application Areas

Wireless sensor networks

Home and building automation

Automated meter reading

Wireless alarm and security systems

Industrial monitoring and control

Wireless gaming and remote controls

Product Lifecycle

The CC1101 is an active and widely used product in the Texas Instruments portfolio

Replacements and upgrades are readily available, ensuring long-term product support

Key Reasons to Choose

Excellent RF performance with high sensitivity and programmable output power

Ultra-low power consumption for extended battery life

Flexible frequency band and modulation support for versatile applications

Small package size for compact designs

Manufactured by a trusted industry leader, Texas Instruments

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments CC1101RGP

Product Attribute CC1101RGPT CC1101RGPR CC1101RTKRG3 CC1101RTKG3
Part Number CC1101RGPT CC1101RGPR CC1101RTKRG3 CC1101RTKG3
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Series - - - -
Serial Interfaces - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Type - - - -
Sensitivity - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Protocol - - - -
Current - Receiving - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Power - Output - - - -
Voltage - Supply - - - -
Frequency - - - -
Modulation - - - -
Memory Size - - - -
RF Family/Standard - - - -
Data Rate (Max) - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Current - Transmitting - - - -
