Manufacturer Part Number

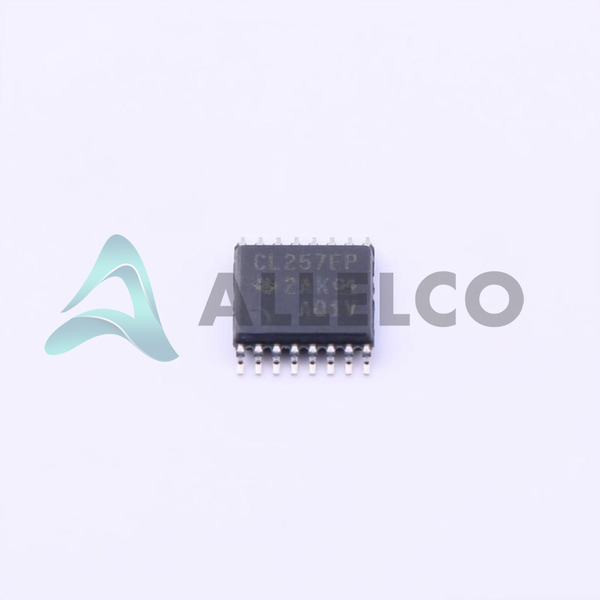

CCBTLV3257MPWREP
Manufacturer
Texas Instruments
Introduction
The CCBTLV3257MPWREP, a premium product by Texas Instruments, belongs to the 74CBT series, designed for high-performance logic signal switching, multiplexing, and decoding in a wide range of applications.
Product Features and Performance
-Operates as a FET Multiplexer/Demultiplexer.
-Has a 4 x 2:1 circuit configuration.
-Single independent circuit design.
-Low voltage operation, supporting 2.3V to 3.6V supply.
-High-temperature tolerance ranging from -55°C to 125°C for robust performance in varied environments.
-Surface mount technology for efficient PCB design.
-Precise and reliable operation in a 16-TSSOP package.
Product Advantages
-Enhanced signal integrity and switching speed.
-Low power consumption for energy-efficient designs.
-Compact and robust package suited for high-density application needs.
-Extended temperature range support for extreme operation conditions.
Key Technical Parameters
-Voltage Supply Source: Single Supply.
-Voltage Supply Range: 2.3V ~ 3.6V.
-Operating Temperature: -55°C ~ 125°C.
-Circuit Configuration: 4 x 2:1.
-Package: 16-TSSOP.
Quality and Safety Features
-Complies with stringent quality and safety standards for peace of mind in critical applications.
Compatibility
-Designed for single supply operations, making it versatile for use in a wide range of low voltage systems.
Application Areas
-Widely applicable in communication systems, data processing, control systems, and any application requiring efficient signal routing.
Product Lifecycle
-This product is in the active stage of its lifecycle, ensuring ongoing production and support.
-Not nearing discontinuation, with replacements or upgrades readily available to meet future requirements.
Several Key Reasons to Choose This Product
-High reliability and performance consistency from Texas Instruments.
-Exceptional temperature and voltage operating range suitable for demanding environments.
-Energy-efficient design supports sustainable and cost-effective solutions.
-Compact and flexible for straightforward integration into existing systems.
-Strong manufacturer support ensures product reliability and longevity.
