Manufacturer Part Number

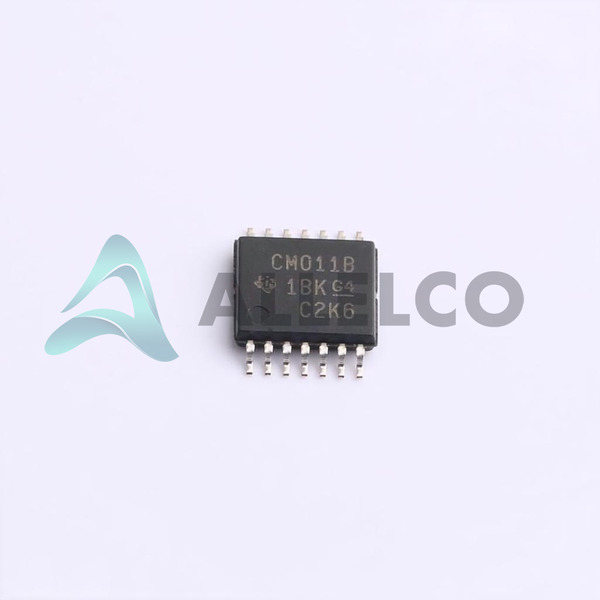

CD4011BPW
Manufacturer
Texas Instruments
Introduction
The CD4011BPW is a quad 2-input NAND gate device, part of the 4000B series of logic gates and inverters.
Product Features and Performance
Logic Type: NAND Gate
Number of Circuits: 4
Number of Inputs: 2
Voltage Supply Range: 3V to 18V
Low Quiescent Current: 1 µA
Output Current High, Low: 3.4mA, 3.4mA
Maximum Propagation Delay: 90ns at 15V, 50pF
Operating Temperature Range: -55°C to 125°C
Surface Mount Type
Provided in 14-TSSOP package
Product Advantages
Robust operating temperature suited for extreme conditions
Wide range of supply voltage for flexible usage in various circuit designs
Low power consumption and balanced output drive current
Key Technical Parameters
Supply Voltage: 3V to 18V
Quiescent Current: 1 µA
Output Current High, Low: 3.4mA
Max Propagation Delay: 90ns at 15V, 50pF
Input Logic Levels: Low (1.5V to 4V); High (3.5V to 11V)
Quality and Safety Features
Wide operational temperature range ensures reliability under extreme conditions
Stable performance across supply voltage variations
Compatibility
Compatible with other logic families when operating parameters (voltage levels, input/output currents) are appropriately matched
Application Areas
Industrial electronics
Consumer Electronics
Communication equipment
Data processing systems
Product Lifecycle
Discontinued at Digi-Key
Customers should contact Texas Instruments for replacement or upgrade options
Several Key Reasons to Choose This Product
Versatile power supply compatibility from 3V up to 18V allows integration into varied electronic systems
Highly suitable for environments with fluctuating temperatures due to its broad operating temperature range
Minimal static consumption enhances energy efficiency in applications
Balanced drive strength for consistent performance in both high and low output states
Compact 14-TSSOP surface mount package saves space on PCBs
