Manufacturer Part Number
CD4049UBNSR
Manufacturer
Texas Instruments
Introduction

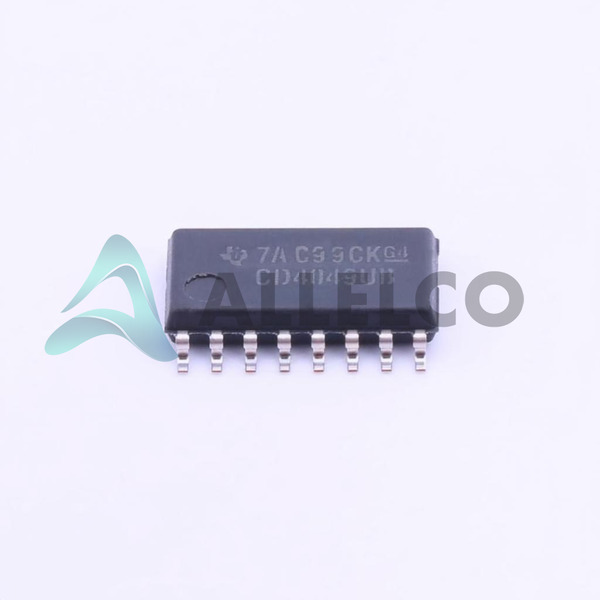

The CD4049UBNSR is part of Texas Instruments' 4000B series, classified as a Logic Gate and Inverter. It is packaged on tape and reel for automated assembly processes.
Product Features and Performance
Contains six logic inverters per chip
Operates in a wide voltage range of 3V to 18V
Offers low quiescent current of 4 µA
Supports output currents of 4.3mA (high) and 24mA (low)
Max propagation delay of 50ns at 15V with a capacitive load of 50pF
Can operate effectively in extreme temperatures ranging from -55°C to 125°C
Product Advantages
High flexibility due to wide operating voltage range
Suitable for various applications with adjustable input logic level ranges
Low power consumption
Efficient in varied environmental conditions due to broad operating temperature range
Key Technical Parameters
Logic Type: Inverter
Number of Circuits: 6
Voltage Supply: 3V ~ 18V
Current Quiescent (Max): 4 µA
Input Logic Level Low: 1V ~ 2.5V
Input Logic Level High: 4V ~ 12.5V
Operating Temperature: -55°C ~ 125°C
Quality and Safety Features
Robust design allowing operations in extreme temperatures
Compatibility
Compatible with mounting type: Surface Mount
Encapsulated within a 16-SO package
Application Areas
Used in logic function deployment across various electronic circuits
Ideal for devices requiring inversions like oscillators and pulse shaping circuits
Product Lifecycle
Status: Active
Continually supported with no immediate plans for discontinuation
Several Key Reasons to Choose This Product
High reliability and robust performance in diverse conditions
Flexible usage across a wide range of electronic applications
Long-term availability supporting future designs without the need for redesign
Surface mount package facilitates easy integration into automated production processes
Low power consumption enhances battery efficiency in portable devices.
