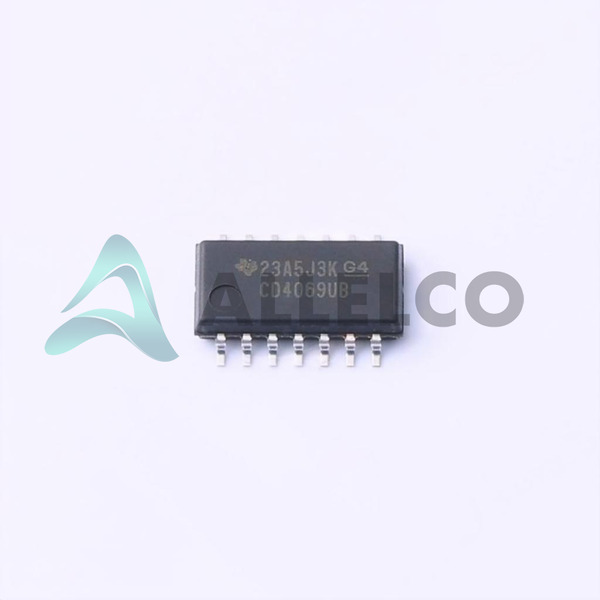

CD4069UBNSR Image
CD4069UBNSR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

CD4069UBNSR - Texas Instruments

Manufacturer Part Number
CD4069UBNSR
Manufacturer
Texas Instruments
Allelco Part Number
32D-CD4069UBNSR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC INVERTER 6CH 1-INP 14SOP
Package
14-SO
Data sheet
1.CD4069UBNSR.pdf ...

Datasheets

Logic Guide.pdf

PCN Design/Specification

CD4069UB 12/Feb/2019.pdf

HTML Datasheet

CD4069UB Types.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 110640
  • Unit Price: $0.29
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.29 $0.29
10+ $0.282 $2.82
30+ $0.277 $8.31
100+ $0.272 $27.20
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

CD4069UBNSR Tech Specifications
Texas Instruments - CD4069UBNSR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - CD4069UBNSR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 3V ~ 18V
Supplier Device Package 14-SO
Series 4000B
Package / Case 14-SOIC (0.209", 5.30mm Width)
Package Tape & Reel (TR)
Operating Temperature -55°C ~ 125°C
Number of Inputs 1
Number of Circuits 6
Product Attribute Attribute Value
Mounting Type Surface Mount
Max Propagation Delay @ V, Max CL 50ns @ 15V, 50pF
Logic Type Inverter
Input Logic Level - Low 1V ~ 2.5V
Input Logic Level - High 4V ~ 12.5V
Features -
Current - Quiescent (Max) 1 µA
Current - Output High, Low 3.4mA, 3.4mA
Base Product Number CD4069

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

CD4069UBNSR

Manufacturer

Texas Instruments

Introduction

The CD4069UBNSR is a high-performance CMOS Inverter from Texas Instruments' 4000B series, packaged in 14-SO, and used in surface mount applications.

Product Features and Performance

Composed of six independent high-gain inverters

Operates from a wide voltage range of 3V to 18V

Features low quiescent current of max 1 µA

Outputs high and low currents of 3.4mA

Supports input logic levels of low (1V to 2.5V) and high (4V to 12.5V)

Maximum propagation delay of 50ns at 15V, with a load capacity of 50pF

Product Advantages

Versatile power operation range, beneficial for various electric configurations

Energy-efficient due to low quiescent current

Consistent output performance suitable for high reliability circuits

Key Technical Parameters

Logic Type: Inverter

Number of Circuits: 6

Voltage Supply: 3V to 18V

Current Quiescent (Max): 1 µA

Current Output High, Low: 3.4mA

Input Logic Level Low: 1V to 2.5V

Input Logic Level High: 4V to 12.5V

Max Propagation Delay: 50ns @ 15V, 50pF

Operating Temperature: -55°C to 125°C

Quality and Safety Features

Sturdy and reliable build quality

Tested for operation in a wide range of environmental conditions

Compatibility

Compatible with all standard CMOS and TTL logic families

Application Areas

Digital logic circuits

Signal processing

Timers

Oscillators

Data processing systems

Product Lifecycle

Active product status with no current plans for discontinuation

Replacement and upgrade paths available through Texas Instruments

Several Key Reasons to Choose This Product

Ultra-low quiescent current enhances battery life in portable systems

Wide range of operating voltages allows for flexible design implementation

High-temperature resistance ideal for industrial grade applications

Reliable and rapid propagation delays ensure effective real-time signal inversion

Long lifecycle with support from a leading semiconductor manufacturer

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments CD4069UBNSR

Product Attribute CD4069UBNSRG4 CD4069UBNS CD4069UBPWR CD4069UBPWRE4
