Manufacturer Part Number
CD4072BE
Manufacturer
Texas Instruments
Introduction

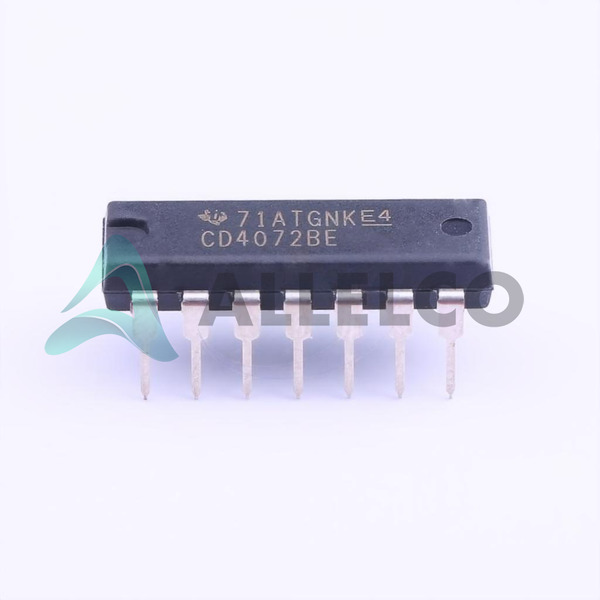

The CD4072BE is part of the 4000B series and serves as a dual 4-input OR gate, encapsulated in a 14-PDIP package.
Product Features and Performance
Logic Type: OR Gate
Number of Circuits: 2
Dual 4-input configuration
Wide voltage supply range from 3V to 18V
Max propagation delay of 90ns at 15V, 50pF
Operating Temperature range from -55°C to 125°C
Through-hole mounting type
Low quiescent current of 1 µA
High and low output current of 3.4mA
Product Advantages
Operational in a wide supply voltage range, compatible with various logic levels
Supports wide temperature range making it suitable for industrial applications
Low power consumption enhances device efficiency
Robust output current capabilities
Key Technical Parameters
Voltage Supply: 3V ~ 18V
Current Quiescent (Max): 1 µA
Current Output High, Low: 3.4mA
Input Logic Level Low: 1.5V ~ 4V
Input Logic Level High: 3.5V ~ 11V
Max Propagation Delay @ V, Max CL: 90ns @ 15V, 50pF
Operating Temperature: -55°C ~ 125°C
Quality and Safety Features
Wide operating temperature ensures reliability under extreme conditions
Stable operation with low quiescent current minimizing power dissipation
Compatibility
Compatible with multiple logic families due to wide input logic level range
Application Areas
Industrial electronics
Automation systems
Embedded systems
Consumer electronics
Product Lifecycle
Status: Active
Not nearing discontinuation with consistent supplier support
Several Key Reasons to Choose This Product
Wide voltage operation range allows flexibility in different power environments
High reliability and performance consistency under extreme temperatures
Suitable for high-density mounting with a small 14-pin package
Low power consumption suitable for power-sensitive applications
Manufactured by Texas Instruments, ensuring high-quality and robust support
