Manufacturer Part Number

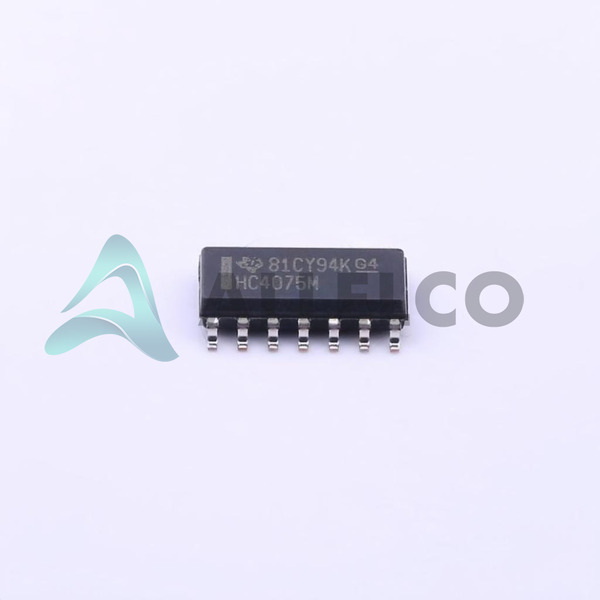

CD74HC4075M96
Manufacturer
Texas Instruments
Introduction
The CD74HC4075M96 is a high-speed CMOS Logic 3x3-Input OR Gate, part of the Texas Instruments 74HC series, designed for digital signal processing.
Product Features and Performance
3 independent 3-input OR gates in one chip
High-speed operation
Low power consumption with 2 µA quiescent current
Wide operating voltage range from 2V to 6V
Maximum output current of 5.2mA for both high and low outputs
Supports input logic levels : Low (0.5V to 1.8V), High (1.5V to 4.2V)
Fast propagation delay: 17ns at 6V, 50pF
Operating temperature range: -55°C to 125°C
Surface Mount 14-SOIC package
Product Advantages
Highly efficient for power-sensitive applications
Flexible voltage operation suitable for diverse logic systems
Robust output current capability
Suitable for fast digital circuits due to quick propagation delay
Excellent thermal range for extreme environments
Key Technical Parameters
Voltage Supply: 2V ~ 6V
Quiescent Current (Max): 2 µA
Output Current High, Low: 5.2mA, 5.2mA
Input Logic Level Low: 0.5V ~ 1.8V; High: 1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
Operating Temperature: -55°C ~ 125°C
Mounting Type: Surface Mount
Package/Case: 14-SOIC
Quality and Safety Features
Built to Texas Instruments' high-quality standards
Designed for reliable performance in a wide range of operating conditions
Compatibility
Compatible with a wide range of microcontrollers and logic circuits due to its flexible voltage requirements and logical compatibility
Application Areas
Digital logic circuits
Signal processing
Complex logic functions including alarms, sequencing, and decision-making logic in consumer, automotive, and industrial electronics
Product Lifecycle
Current status: Active
Not nearing discontinuation, with ongoing support and availability from Texas Instruments
Several Key Reasons to Choose This Product
High reliability and performance from a reputable manufacturer, Texas Instruments
Low power consumption enhances battery life in portable applications
Wide voltage range and high-speed operation suitable for advanced digital systems
Robust operating temperature range making it ideal for harsh environments
Ease of integration with existing systems due to standard packaging and compatibility features
